Determine the Resultant of a coplanar – concurrent force system shown in Fig.1 100kN 30° 20kN 30° 45° 80kN 90kN 50kN Fig.1
Added by Kevin H.
Close
Step 1
For the 100 kN force at 30°, the horizontal component is 100 kN * cos(30°) = 86.6025 kN and the vertical component is 100 kN * sin(30°) = 50 kN. For the 20 kN force at 45°, the horizontal component is 20 kN * cos(45°) = 14.1421 kN and the vertical component is Show more…
Show all steps
Your feedback will help us improve your experience
Animesh Raj and 52 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts

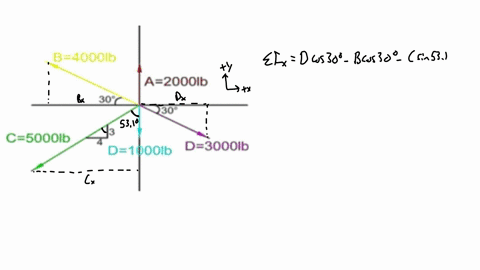

Recommended Videos
Q2/ Find the resultant force for the concurrent coplanar force system, shown in figure. 120N, 80N, 55N, 600N
Supratim P.
Justin S.

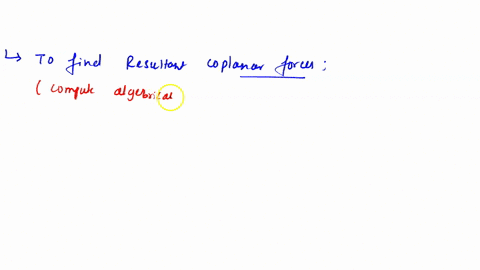

Compute algebraically the resultant of the following coplanar forces: $100 \mathrm{~N}$ at $30^{\circ}, 141.4 \mathrm{~N}$ at $45^{\circ}$, and $100 \mathrm{~N}$ at $240^{\circ}$. Check your result graphically.
