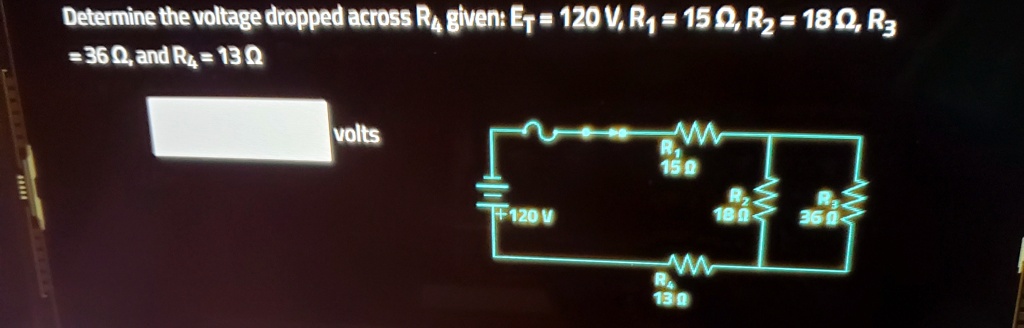

Determine the voltage dropped across $R_4$ given: $E_T = 120 V$, $R_1 = 15 Omega$, $R_2 = 18 Omega$, $R_3 = 36 Omega$, and $R_4 = 13 Omega$
Added by Elizabeth L.
Close
Step 1
To calculate the total resistance, we need to find the equivalent resistance of the parallel combination of R2 and R3, and then add it to R1. The formula for calculating the equivalent resistance of two resistors in parallel is: 1/Rt = 1/R2 + 1/R3 Substituting Show more…
Show all steps
Your feedback will help us improve your experience
Supreeta N and 72 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

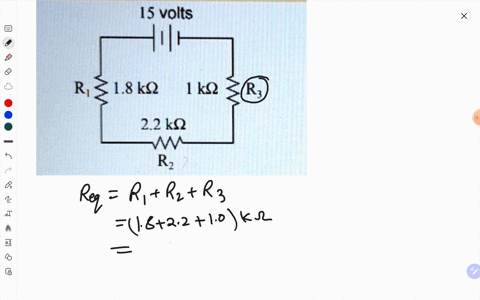

Determine the voltage dropped across resistor R3 in this circuit: 15 volts R1 = 1.8 k̩ R2 = 2.2 k̩ R3 = 1 k̩ Select one: a. 5.4 Volts b. 7.5 volts c. 6.6 Volts d. 15 Volts e. 3.0 volts
Dwijendra R.

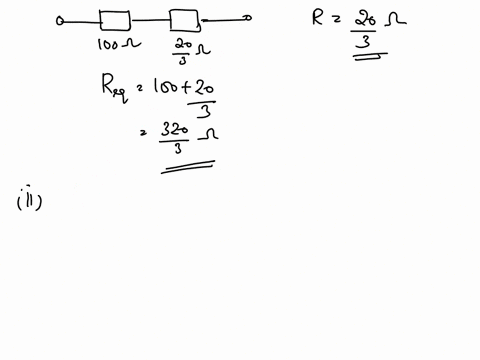

Useful notes: Q4. Equivalent resistance Ohm's Law V = IR (i) Calculate the equivalent resistance of the circuit. Series: R_total = R1 + R2 + R3 + ... Parallel: 1/R_total = 1/R1 + 1/R2 + 1/R3 + ... (ii) Determine the total current in the circuit. (iii) Determine the voltage drop and current passing through for each resistor 10 Ή 40 Ή 60 Ή 20 Ή 20 V
Madhur L.

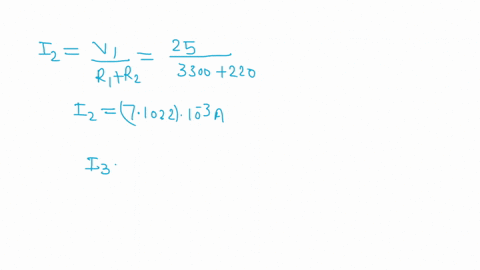

Given the circuit below, find the current (A) through R2 and R3 and the voltage drop (V) across R4. R3: 330Ω R1: 3.3kΩ R4: 2.2kΩ R2: 220Ω
Sri K.
