Determine using the Thevenin's theorem, the current in 0.8 ? resistor in the network shown below.
Added by Maurice A.
Close
Step 1
The voltage source is 12V. The resistors are R1=1Ω, R2=5Ω, R3=4Ω, and RL=0.8Ω. Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 90 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Using Thevenin's Theorem, find the current that flows through R4 in Figure 7. R2 = 4Ω R1 = 6Ω R4 = 3Ω E1 = 8 V R3 = 2Ω Figure 7
Adi S.
For the circuit in Fig. $18.74,$ at $\omega=2 \mathrm{rad} / \mathrm{s}$ $\mathbf{z}_{11}=10 \Omega, \mathbf{z}_{12}=\mathbf{z}_{21}=j 6 \Omega, \mathbf{z}_{22}=4 \Omega .$ Obtain the Thevenin equivalent circuit at terminals $a-b$ and calculate $v_{o}$.

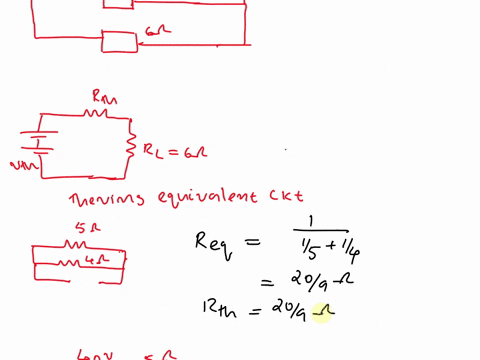

2.2 Use Thevenin's theorem to find the current flowing in the 6 Ω resistor shown in the Figure below and the power dissipated in the 4 Ω resistor. 40 V 5 Ω 6 Ω
