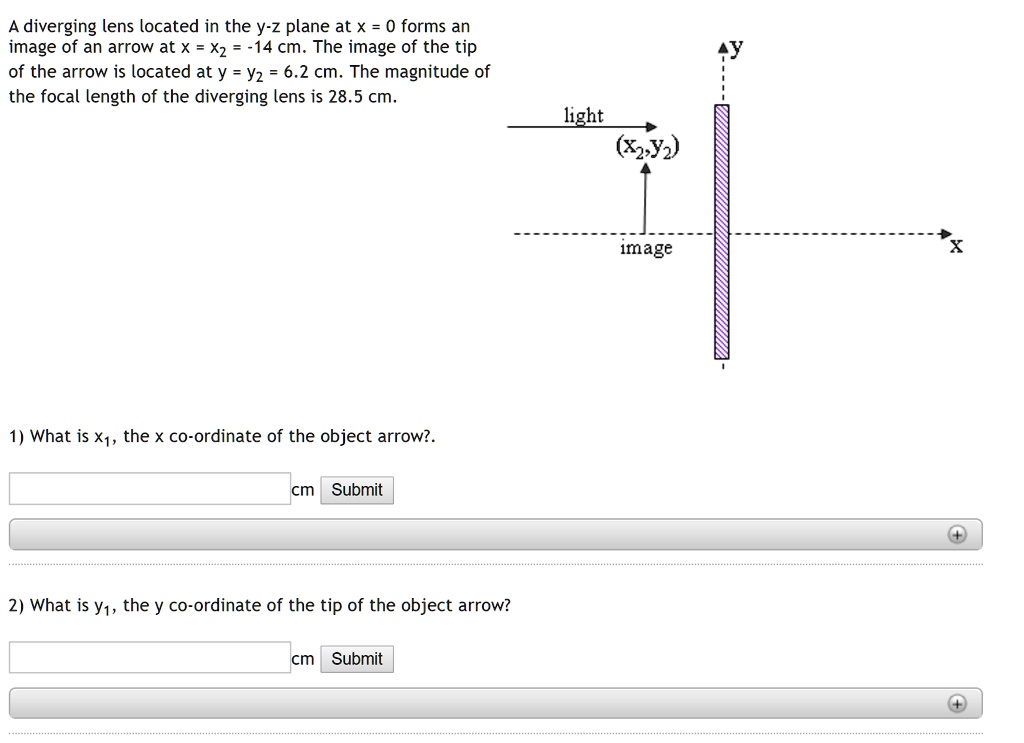

A diverging lens located in the y-z plane at x = 0 forms an image of an arrow at x = x2 = -14 cm. The image of the tip of the arrow is located at y = y2 = 6.2 cm. The magnitude of the focal length of the diverging lens is 28.5 cm. 1) What is x1, the x co-ordinate of the object arrow?. 2) What is y1, the y co-ordinate of the tip of the object arrow?
Added by Iker G.
Close
Step 1
5}\] Solving for \(x_1\): \[\frac{1}{-x_1} = \frac{1}{14} - \frac{1}{28.5}\] \[\frac{1}{-x_1} = \frac{2.5 - 1}{28.5}\] \[\frac{1}{-x_1} = \frac{1.5}{28.5}\] \[-x_1 = \frac{28.5}{1.5}\] \[-x_1 = 19\] \[x_1 = -19 \, \text{cm}\] ** Show more…
Show all steps
Your feedback will help us improve your experience
Penny Riley and 63 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Madhur L.

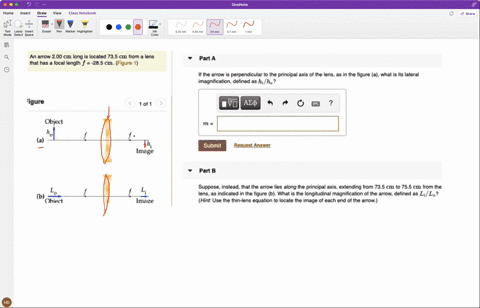

An arrow 2.00 cm long is located 73.5 cm from a lens that has a focal length f = -28.5 cm. (Figure 1) Part A If the arrow is perpendicular to the principal axis of the lens, as in the figure (a), what is its lateral magnification, defined as h_i / h_o? m = Part B Suppose, instead, that the arrow lies along the principal axis, extending from 73.5 cm to 75.5 cm from the lens, as indicated in the figure (b). What is the longitudinal magnification of the arrow, defined as L_i / L_o? (Hint: Use the thin-lens equation to locate the image of each end of the arrow.)
