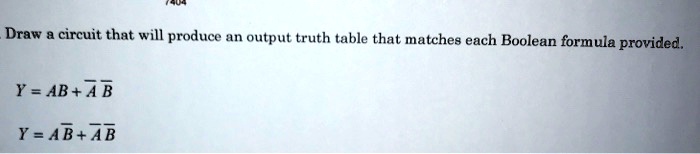

Draw a circuit that will produce an output truth table that matches each Boolean formula provide

Question

Andrew Noble · Answer

Here, we want to draw a logic circuit with these inputs given the bullying expression. What I li

Sri K · Answer

Here we are given with a logical circuit diagram. So this line represents B bar plus C bar and w

Pritesh Ranjan · Answer

In this problem, we have been given a Boolean expression y equals AB plus BC. And here we have t

Pritesh Ranjan · Answer

In this problem, we have to draw the logic circuit of the Boolean equation, which is y is equal

Adi S · Answer

Now for this the logic diagram for the question it will be giving us the output like this here.

Draw a circuit that will produce an output truth table that matches each Boolean formula provided. Y = AB + \overline{A}\overline{B} Y = A\overline{B} + \overline{A}\overline{B}
