Question

3. Draw circuits based on the following equations. Include current and loop directions that you choose to get these equations: (1) 12 V = I { 1 / [1/(2? + 4? + 3?) + 1/3?] + 3/4? } (2) (120 ?)I1 - 7.80 V + (370 ?)I2 = 0 -(370 ?)I2 + (150 ?)I3 + 3.10 V = 0 -I1 + I3 + I2 = 0

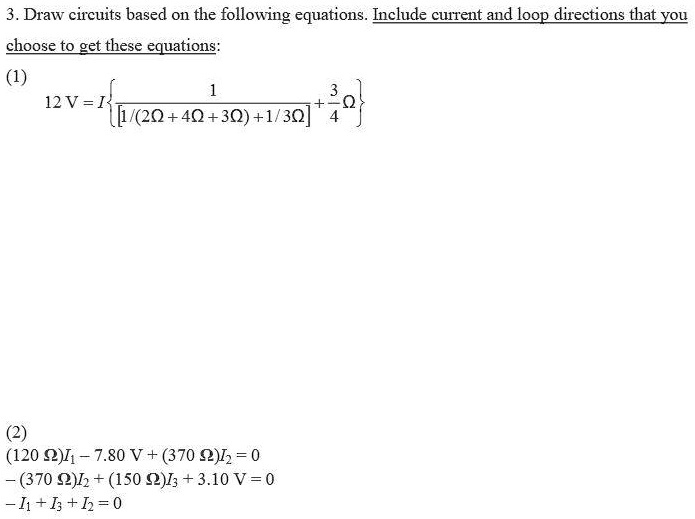

          3. Draw circuits based on the following equations. Include current and loop directions that you choose to get these equations:
(1)
12 V = I { 1 / [1/(2? + 4? + 3?) + 1/3?] + 3/4? }
(2)
(120 ?)I1 - 7.80 V + (370 ?)I2 = 0
-(370 ?)I2 + (150 ?)I3 + 3.10 V = 0
-I1 + I3 + I2 = 0

3. Draw circuits based on the following equations. Include current and loop directions that you choose to get these equations:
(1)
12 V = I 1 / [1/(2? + 4? + 3?) + 1/3?] + 3/4?
(2)
(120 ?)I1 - 7.80 V + (370 ?)I2 = 0
-(370 ?)I2 + (150 ?)I3 + 3.10 V = 0
-I1 + I3 + I2 = 0

Added by Jennifer B.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Suman K

05/07/2022

Step 1

The circuit consists of three resistors in series (40Ω, 30Ω, 1732Ω) and one resistor in parallel with the series combination (120Ω). The voltage source is 12V. Show more…

Show all steps

Thanks for your feedback!

3. Draw circuits based on the following equations. Include current and loop directions that you choose to get these equations: (1) 12 V = I { 1 / [1/(2̐ + 4̐ + 3̐) + 1/3̐] + 3/4̐ } (2) (120 ̐)I1 - 7.80 V + (370 ̐)I2 = 0 -(370 ̐)I2 + (150 ̐)I3 + 3.10 V = 0 -I1 + I3 + I2 = 0
