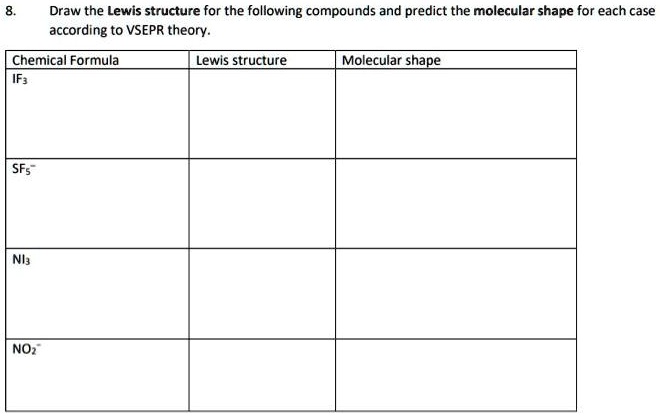

8. Draw the Lewis structure for the following compounds and predict the molecular shape for each case according to VSEPR theory. Chemical Formula | Lewis structure | Molecular shape IF3 SF5- NI3 NO2-
Added by Laura C.
Close
Step 1
Sulfur will share 5 electrons with 5 fluorine atoms and have 1 lone pair of electrons. Each fluorine atom will have 3 lone pairs. The Lewis structure for SF<sub>5</sub> will be: \[ \text{S} \quad \text{F} \quad \text{F} \quad \text{F} \quad \text{F} \quad Show more…
Show all steps
