Draw the sigma bonds of the orbital overlap diagram for HCN. Label all phases and bonds and add all the + or - signs.
Added by Crystal P.
Step 1
- There is a sigma bond between the carbon atom and the nitrogen atom. - There is a sigma bond between the nitrogen atom and the carbon atom. Show more…
Show all steps
Your feedback will help us improve your experience
Dinesh Singh and 71 other Chemistry 101 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Draw the Lewis structure for HCN. Indicate the hybrid orbitals, and draw a picture showing all the bonds between the atoms, labeling each bond as $\sigma$ or $\pi .$
Madhur L.

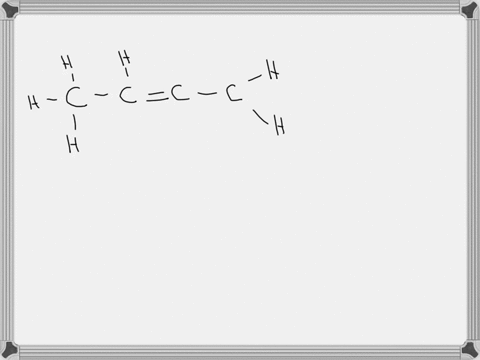

Draw an electron dot structure and the p-orbitals / π-bond orbital overlap diagram for the following molecule. Represent all sigma bonds as lines. Include all of the hydrogens in the drawing. CH3CHCCH2
David C.

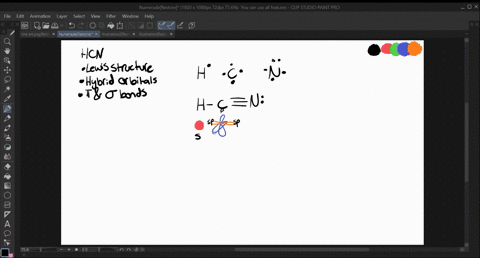

These questions are designed to be considered by groups of students in class. Often these questions work well for introducing a particular topic in class. Draw the Lewis structure for HCN. Indicate the hybrid orbitals, and draw a picture showing all the bonds between the atoms, labeling each bond as $\sigma$ or $\pi$.
