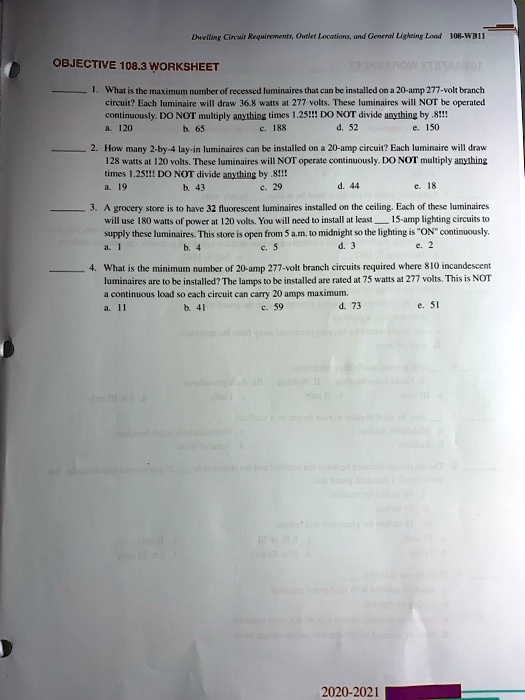

OBJECTIVE 108.3 WORKSHEET 1. What is the maximum number of recessed luminaires that can be installed on a 20-amp 277-volt branch circuit? Each luminaire will draw 36.8 watts at 277 volts. These luminaires will NOT be operated continuously. DO NOT multiply anything times 1.25!!! DO NOT divide anything by .8!!! a. 120 b. 65 c. 188 d. 52 e. 150 2. How many 2-by-4 lay-in luminaires can be installed on a 20-amp circuit? Each luminaire will draw 128 watts at 120 volts. These luminaires will NOT operate continuously. DO NOT multiply anything times 1.25!!! DO NOT divide anything by .8!!! a. 19 b. 43 c. 29 d. 44 e. 18 3. A grocery store is to have 32 fluorescent luminaires installed on the ceiling. Each of these luminaires will use 180 watts of power at 120 volts. You will need to install at least ___ 15-amp lighting circuits to supply these luminaires. This store is open from 5 a.m. to midnight so the lighting is "ON" continuously. a. 1 b. 4 c. 5 d. 3 e. 2 4. What is the minimum number of 20-amp 277-volt branch circuits required where 810 incandescent luminaires are to be installed? The lamps to be installed are rated at 75 watts at 277 volts. This is NOT a continuous load so each circuit can carry 20 amps maximum. a. 11 b. 41 c. 59 d. 73 e. 51
Added by Carla A.
Close
Step 1
The maximum number of recessed luminaires that can be installed on a 20-amp 277-volt branch circuit can be calculated by dividing the total power of the circuit (20 amps * 277 volts = 5540 watts) by the power of each luminaire (36.8 watts). So, 5540 / 36.8 = Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 88 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

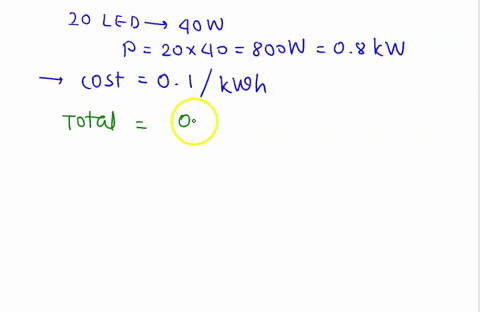

There are 20 lights and ballasts that consume 440W (400W high intensity discharge (HID) bulbs with a ballast that consumes 40W). The cost of electricity is $0.10/kWh and $7/kW-month demand, and the lights are on 24 hours a day, seven days a week. How much electricity do the HID lights and ballasts consume monthly? What is the estimated cost of operating the 20 HID lights and ballast monthly? For the same lights in question 1, you are able to install the same timer as Question 6, reducing daily operating hours from 24 hours to 8 hours. However, you are also able to replace the 400W lights and 40W ballasts with LED luminaires that consume 150W of power each. How much electricity do the LED luminaires consume monthly? What is the new estimated cost of operating the 20 LED luminaires monthly?
