The diagram shows a material formed into a sphere of radius R. The diagram shows the magnitude of the electric field E as a function of distance r from the center of the sphere. Which of the following can be concluded from this graph?
Added by Rachel W.
Close
Step 1
Step 1: The graph shows that the electric field is zero inside the sphere (r < R). Show more…
Show all steps
Your feedback will help us improve your experience
Tahleem K and 86 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

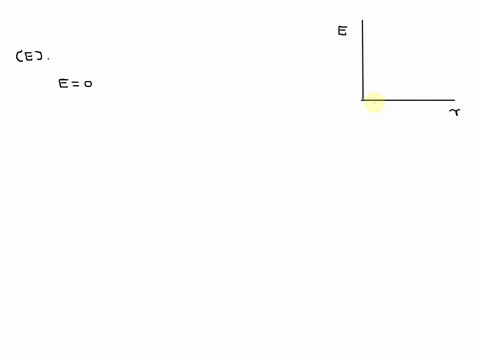

Which of the following graphs represents the magnitude of the electric field as a function of the distance from the center of a solid charged conducting sphere of radius R? graph A graph B graph C graph D graph E
Tahleem K.

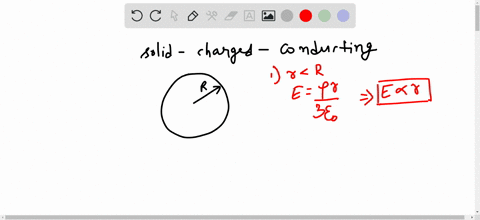

Which of the following graphs represents the magnitude of the electrical field as a function of the distance from the center of the solid charged conducting sphere of radius R? Explain.
Pritesh R.
A solid insulating sphere of radius R contains positive charge that is distributed with a volume charge density that depend on distance from the sphere center. Which of the graphs below might give the magnitude E of the electric field as a function of the distance r from the center of the sphere? The charge density ρ=ρ(r), not uniform
Ankur S.
