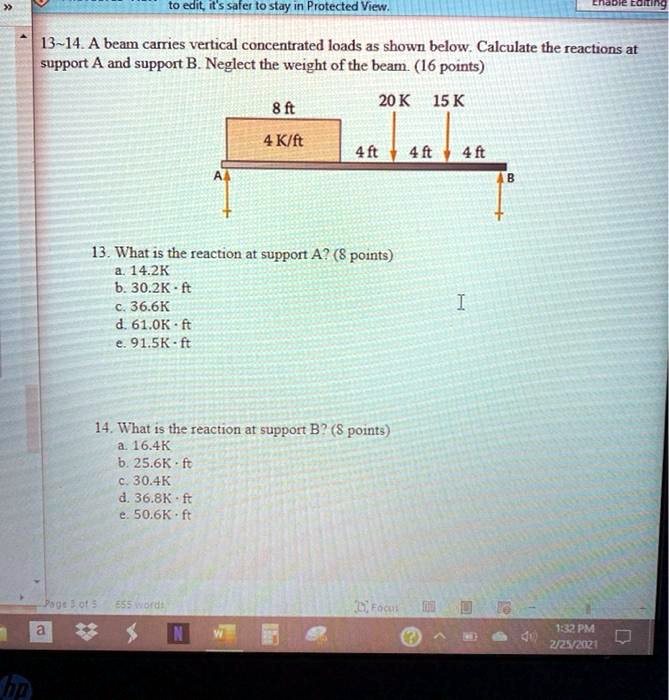

13-14. A beam carries vertical concentrated loads as shown below. Calculate the reactions at support A and support B. Neglect the weight of the beam. (16 points) 8 ft 4 K/ft 4 ft 4 ft 4 ft 20 K 15 K 13. What is the reaction at support A? (8 points) a. 14.2K b. 30.2K · ft c. 36.6K d. 61.0K · ft e. 91.5K · ft 14. What is the reaction at support B? (8 points) a. 16.4K b. 25.6K · ft c. 30.4K d. 36.8K · ft e. 50.6K · ft

          13-14. A beam carries vertical concentrated loads as shown below. Calculate the reactions at support A and support B. Neglect the weight of the beam. (16 points)
8 ft
4 K/ft
4 ft 4 ft 4 ft
20 K 15 K
13. What is the reaction at support A? (8 points)
a. 14.2K
b. 30.2K · ft
c. 36.6K
d. 61.0K · ft
e. 91.5K · ft
14. What is the reaction at support B? (8 points)
a. 16.4K
b. 25.6K · ft
c. 30.4K
d. 36.8K · ft
e. 50.6K · ft

13-14. A beam carries vertical concentrated loads as shown below. Calculate the reactions at support A and support B. Neglect the weight of the beam. (16 points)
8 ft
4 K/ft
4 ft 4 ft 4 ft
20 K 15 K
13. What is the reaction at support A? (8 points)
a. 14.2K
b. 30.2K · ft
c. 36.6K
d. 61.0K · ft
e. 91.5K · ft
14. What is the reaction at support B? (8 points)
a. 16.4K
b. 25.6K · ft
c. 30.4K
d. 36.8K · ft
e. 50.6K · ft

Added by Tom-S B.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Sri K

06/18/2022

Step 1

4 = 67 \] \[ A_Y = 67 - 30.4 \] \[ \therefore \textbf{A_Y = 36.6 K} \] Show more…
