(Energy in capacitors and duty cycle) World electrical energy generation in 2018 was around 25,000 TWh. To get an estimate of the world power generation capacity calculate the power assuming that this amount of energy was generated at a constant rate for the entire year.
Added by Joaquin R.
Step 1
1 TWh = \(10^{12}\) Wh, so: \[ 25,000 \text{ TWh} = 25,000 \times 10^{12} \text{ Wh} = 25 \times 10^{15} \text{ Wh} \] Show more…
Show all steps
Your feedback will help us improve your experience
Rabia Sarwar and 87 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Energy stored in the capacitor versus Voltage 1- Open the simulation (set on the ‐Introduction‐ tab). (Capacitor Lab) 2- Set the plates to the maximum area (400 mm²) and minimum separation (5.0 mm) 3- Using the provided meters (charge, energy, Electric field E, and voltmeter) complete the data table below 4- Include the calculation of the capacitance using C₀ = (ε₀A)∕d. 5- Increase the voltage from the battery and record the values of the voltage across the capacitor, charge on the plate, and energy stored Separation d ( m) Plate Area A ( m²) Capacitance C₀ = (ε₀A)∕d ( 8.85e-12 F) Trial | Potential difference V (V) | Charge Q (C) | Energy Stored U (J) | Electric Field between plates E (V/m) | V² (volt)² | Q² (C²) | E²(V/m)² | Stored Energy Density u(J/m³) u = U∕Ad 1 | 0.119 | 0.84E-13 | 5.00E-15 | 0.024 | 0.014 | 7.06E-27 | | 2 | 0.179 | 1.26E-13 | 1.10E-14 | 0.036 | 0.032 | 1.59E-26 | | 3 | 0.268 | 1.90E-13 | 2.50E-14 | 0.054 | 0.072 | 3.61E-26 | | 4 | 0.387 | 2.74E-13 | 5.30E-14 | 0.077 | 0.150 | 7.51E-26 | | 5 | 0.506 | 3.58E-13 | 9.10E-14 | 0.101 | 0.256 | 1.28E-25 | | 6 | 0.684 | 4.85E-13 | 1.66E-13 | 0.137 | 0.468 | 2.35E-25 | | 7 | 0.714 | 5.06E-13 | 1.81E-13 | 0.143 | 0.510 | 2.56E-25 | | 8 | 0.863 | 6.11E-13 | 2.64E-13 | 0.173 | 0.745 | 3.73E-25 | | 9 | 1.071 | 7.59E-13 | 4.06E-13 | 0.214 | 1.147 | 5.76E-25 | | 10 | 1.5 | 10.62E-13 | 7.97E-13 | 0.300 | 2.250 | 1.13E-24 | |
Rabia S.

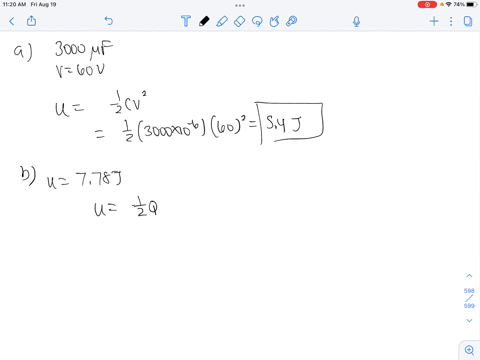

Capacitor Part A A capacitor consists of two closely spaced metal conductors of large area, separated by a thin insulating foil. It has an electrical capacity of 3000.0 μF and is charged to a potential difference of 60.0 V. Calculate the amount of energy stored in the capacitor. Part B Calculate the charge on this capacitor when the electrical energy stored in the capacitor is 7.78 J. Part C If the two plates of the capacitor have their separation increased by a factor of 5 while the charge on the plates remains constant, by what factor is the energy stored in the capacitor increased?
Penny R.

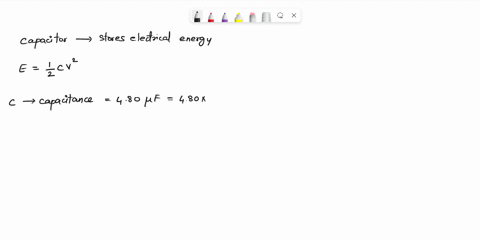

A 24.0-V battery is connected to a 4.80-μF capacitor. How much energy is stored in the capacitor? Your response differs significantly from the correct answer. Rework your solution from the beginning and check. Need Help? Read It
Adi S.
