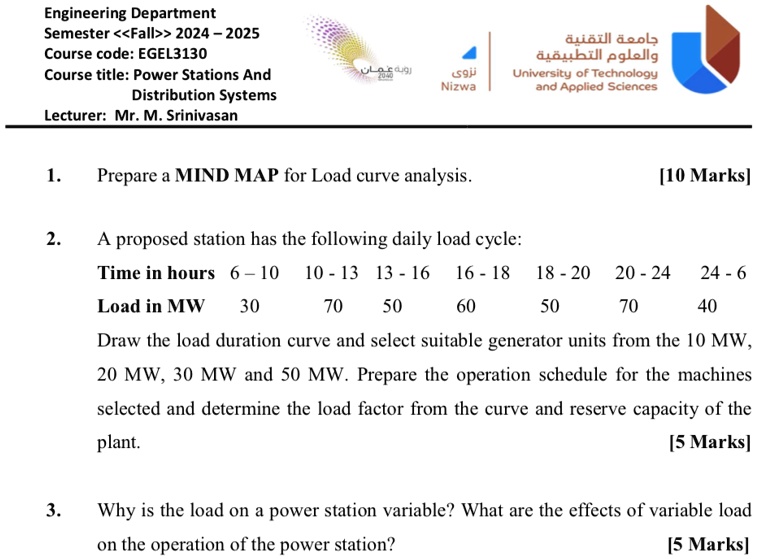

Engineering Department
Semester <<Fall>> 2024-2025
Course code: EGEL3130
Course title: Power Stations And
Distribution Systems
Lecturer: Mr. M. Srinivasan
1.
Prepare a MIND MAP for Load curve analysis.
[10 Marks]
2.
A proposed station has the following daily load cycle:
Time in hours 6-10 10-13 13-16 16-18 18-20 20-24 24-6
Load in MW 30 70 50 60 50 70 40
Draw the load duration curve and select suitable generator units from the 10 MW,
20 MW, 30 MW and 50 MW. Prepare the operation schedule for the machines
selected and determine the load factor from the curve and reserve capacity of the
plant.
[5 Marks]
3.
Why is the load on a power station variable? What are the effects of variable load
on the operation of the power station?
[5 Marks]
