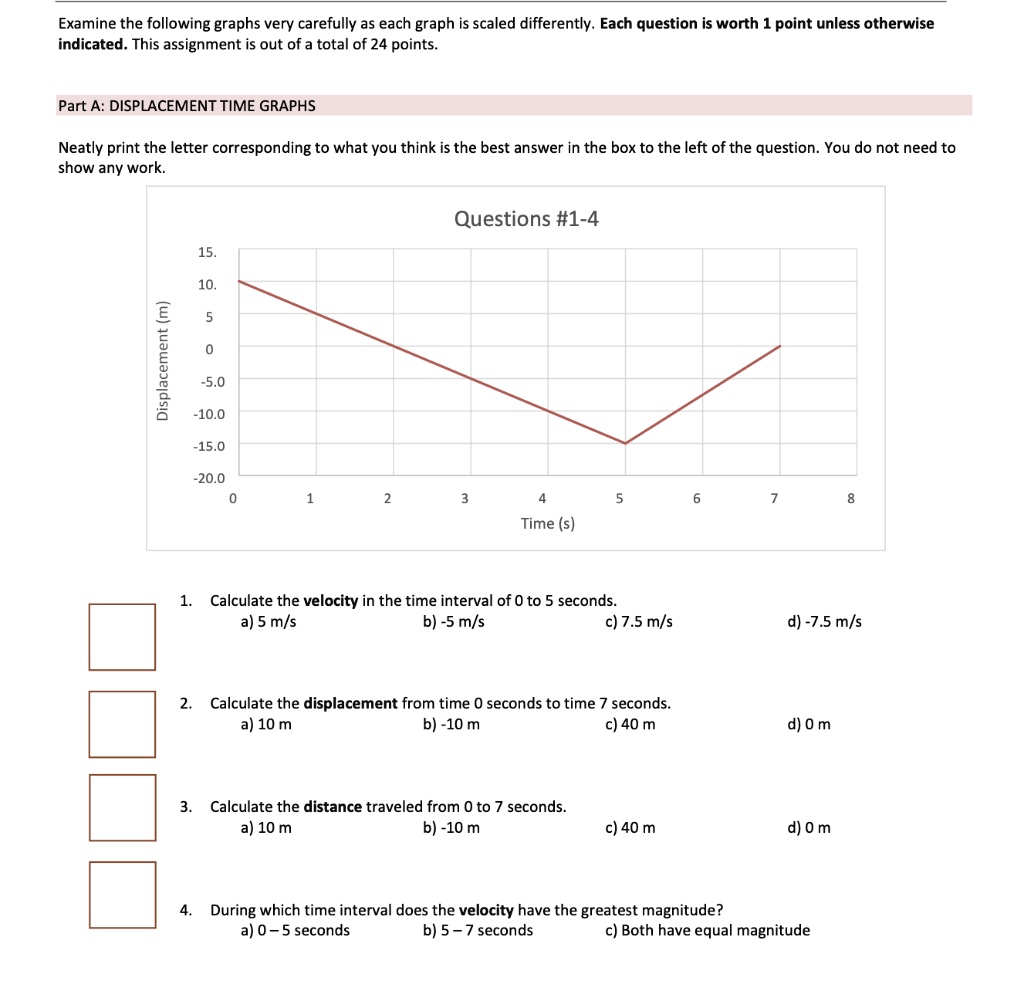

Examine the following graphs very carefully as each graph is scaled differently. Each question is worth 1 point unless otherwise indicated. This assignment is out of a total of 24 points. Part A: DISPLACEMENT TIME GRAPHS Neatly print the letter corresponding to what you think is the best answer in the box to the left of the question. You do not need to show any work. Questions #1-4 Displacement (m) 15. 10. 5 0 -5.0 -10.0 -15.0 -20.0 0 1 2 3 4 5 6 7 8 Time (s) 1. Calculate the velocity in the time interval of 0 to 5 seconds. a) 5 m/s b) -5 m/s c) 7.5 m/s d) -7.5 m/s 2. Calculate the displacement from time 0 seconds to time 7 seconds. a) 10 m b) -10 m c) 40 m d) 0 m 3. Calculate the distance traveled from 0 to 7 seconds. a) 10 m b) -10 m c) 40 m d) 0 m 4. During which time interval does the velocity have the greatest magnitude? a) 0 – 5 seconds b) 5 – 7 seconds c) Both have equal magnitude

          Examine the following graphs very carefully as each graph is scaled differently. Each question is worth 1 point unless otherwise indicated. This assignment is out of a total of 24 points.
Part A: DISPLACEMENT TIME GRAPHS
Neatly print the letter corresponding to what you think is the best answer in the box to the left of the question. You do not need to show any work.
Questions #1-4
Displacement (m)
15.
10.
5
0
-5.0
-10.0
-15.0
-20.0
0 1 2 3 4 5 6 7 8
Time (s)
1. Calculate the velocity in the time interval of 0 to 5 seconds.
a) 5 m/s b) -5 m/s c) 7.5 m/s d) -7.5 m/s
2. Calculate the displacement from time 0 seconds to time 7 seconds.
a) 10 m b) -10 m c) 40 m d) 0 m
3. Calculate the distance traveled from 0 to 7 seconds.
a) 10 m b) -10 m c) 40 m d) 0 m
4. During which time interval does the velocity have the greatest magnitude?
a) 0 – 5 seconds b) 5 – 7 seconds c) Both have equal magnitude
