The turbine in Fig. 5-24 is used in a small hydroelectric plant. If the discharge through the 0.3-m-diameter draft tube at B is 1.7 m³/s, determine the amount of power that is transferred from the water to the turbine blades. The frictional head loss through the penstock, turbine, and draft tube is 4 m.
Added by Susan D.
Close
Step 1
To determine the amount of power transferred from the water to the turbine blades, we can follow these steps: ** Show more…
Show all steps
Your feedback will help us improve your experience
Narayan Hari and 55 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
The figure below shows a small hydroelectric power plant that diverts water from the Truckee River. The elevation H between the water surface of the reservoir and the pond is 30 m. The velocity of water exiting the turbine is 17 m/s, and discharge is 6 m³/s. The head loss in the system is three meters. Find the power in kilowatts produced by the turbine.
Adi S.

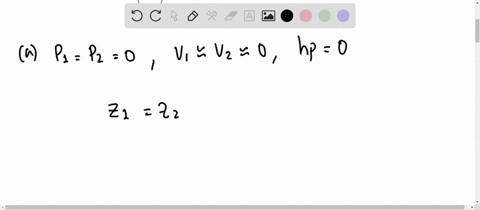

The pump-turbine system in Fig. P3.135 draws water from the upper reservoir in the daytime to produce power for a city. At night, it pumps water from lower to upper reservoirs to restore the situation. For a design flow rate of 15,000 gal/min in either direction, the friction head loss is 17 ft. Estimate the power in $\mathrm{kW}(a)$ extracted by the turbine and $(b)$ delivered by the pump.
Eduard S.
In a hydroelectric power plant, water at 20°C is supplied to the turbine at a rate of 0.8 m^3/s through a 200-m-long, 0.35-m-diameter cast iron pipe. The elevation difference between the free surface of the reservoir and the turbine discharge is 70 m, and the combined turbine-generator efficiency is 84 percent. Disregarding the minor losses because of the large length-to-diameter ratio, determine the electric power output of this plant.
