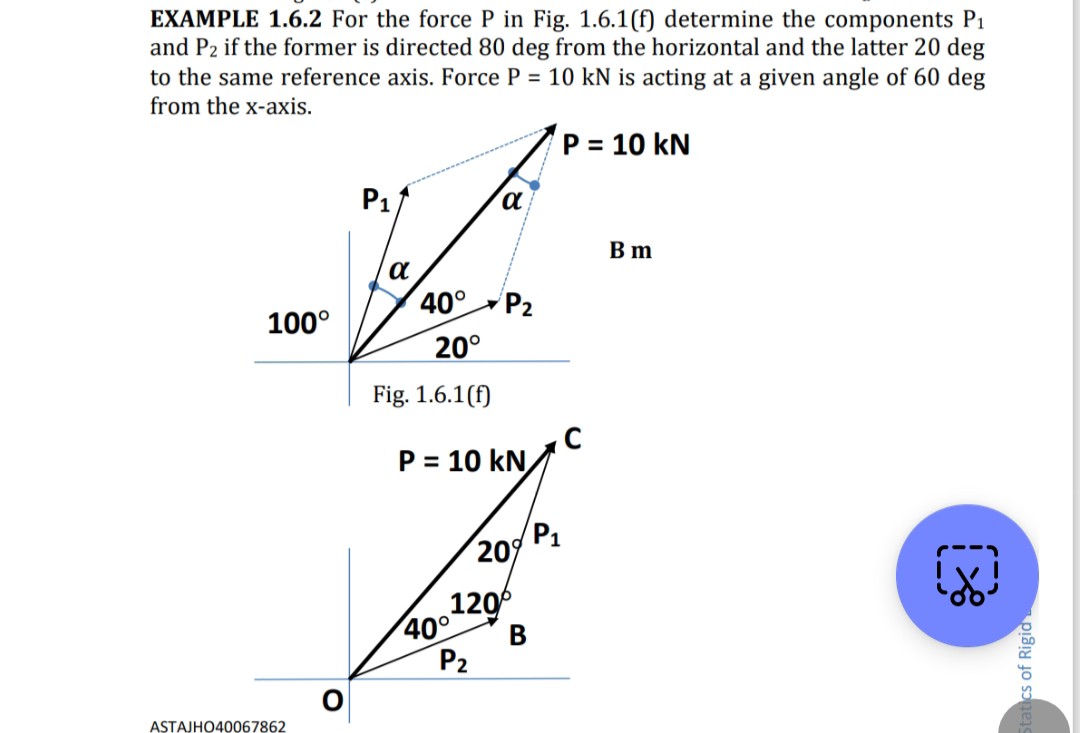

EXAMPLE 1.6.2 For the force P in Fig. 1.6.1(f) determine the components \( \mathrm{P}_{1} \) and \( P_{2} \) if the former is directed 80 deg from the horizontal and the latter 20 deg to the same reference axis. Force \( P=10 \mathrm{kN} \) is acting at a given angle of 60 deg from the x-axis. ASTAJHO40067862
Added by Christine A.
Close
Step 1
In this case, we are given that the force P is acting at an angle of 60 degrees from the x-axis. The component P1 is the projection of P along the axis that is 80 degrees from the horizontal. Show more…
Show all steps
Your feedback will help us improve your experience
Jeremy Gamble and 95 other Intro Stats / AP Statistics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Two forces are applied as shown to a hook support. Knowing that the magnitude of $P$ is 35 N, determine by trigonometry $(a)$ the required angle $\alpha$ if the resultant $R$ of the two forces applied to the support is to be horizontal, (b) the corresponding magnitude of $\mathbf{R}$.
Statics of Particles
Addition of Planar Forces
The resultant of the three concurrent forces acting on the eyebolt is the force R = 800j N. Determine the magnitude of the force P and the angle θ that specifies the direction of the 900-N force.
Adi S.

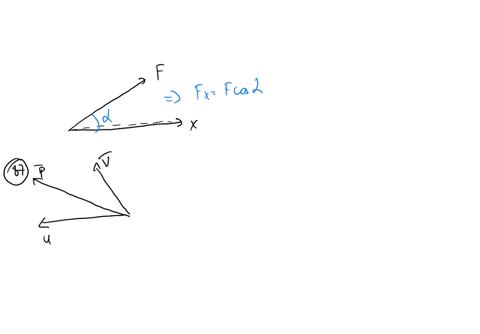

The correct answer to the problem is shown by the highlighted letters.
Ivan K.
