Example 21.1 Determine the moment of inertia of the bent rod about the Aa axis. The mass of each of the three segments are shown.
Added by William G.
Close
Step 1
Step 1: The moment of inertia of the bent rod about the Aa axis is the sum of the moments of inertia of the three segments. Show more…
Show all steps
Your feedback will help us improve your experience
Paul Gabriel and 85 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

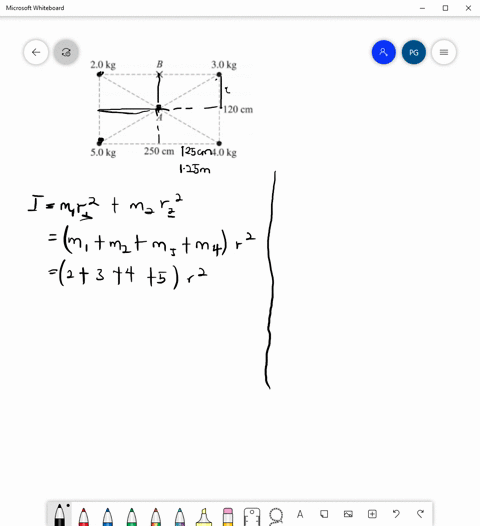

Find the moment of inertia of the four masses shown in Eig. $10-7$ relative to an axis perpendicular to the page and extending ( $a$ ) through point- $A$ and $(b)$ through point- $B$. (a) From the definition of moment of inertia, $$I_{A}=m_{1} r_{1}^{2}+m_{2} r_{2}^{2}+\cdots+m_{N} r_{N}^{2}=(2.0 \mathrm{~kg}+3.0 \mathrm{~kg}+4.0 \mathrm{~kg}+5.0 \mathrm{~kg})\left(r^{2}\right)$$ where $r$ is half the length of the diagonal: $$r=\frac{1}{2} \sqrt{(1.20 \mathrm{~m})^{2}+(2.50 \mathrm{~m})^{2}}=1.39 \mathrm{~m}$$ Thus, $I_{A}=27 \mathrm{~kg} \cdot \mathrm{m}^{2}$ (b) We cannot use the parallel-axis theorem here because neither $A$ nor $B$ is at the center of mass. Hence, we proceed as before. Because $r=1.25 \mathrm{~m}$ for the $2.0$ - and $3.0$ -kg masses, while $r=\sqrt{(1.20)^{2}+(1.25)^{2}}=1.733$ for the other two masses, $I_{B}=(2.0 \mathrm{~kg}+3.0 \mathrm{~kg})(1.25 \mathrm{~m})^{2}+(5.0 \mathrm{~kg}+4.0 \mathrm{~kg})(1.733 \mathrm{~m})^{2}=33 \mathrm{~kg} \cdot \mathrm{m}^{2}$.
(a) Consider a strip of length $d x$ at a perpendicular distance $x$ from the axis about which we have to find the moment of inertia of the rod. The elemental mass of the rod equals $d m=\frac{m}{l} d x$ Moment of inertia of this element about the axis $d I=d m x^{2}=\frac{m}{l} d x \cdot x^{2}$ Thus, moment of inertia of the rod, as a whole about the given axis (b) Let us imagine the plane plane taking the origin at the of the sides of the plate (Fig.). Obviously $=\frac{m a^{2}}{3}$ Similarly $I_{y}=\frac{m b^{2}}{3}$ Hence from perpendicular axis theorem
Physical Fundamentals Of Mdchanics
Dynamics of a Solid Body

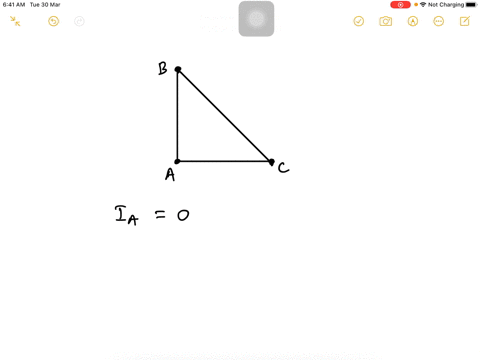

They are connected by massless, rigid rods. Find the moment of inertia about an axis that passes through mass A and is perpendicular to the page.
