Question

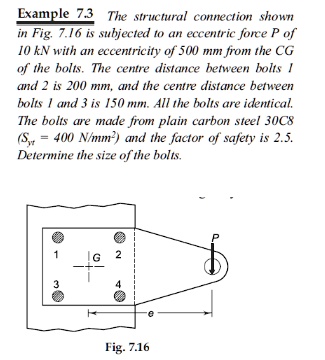

Example 7.3 The structural connection shown in Fig. 7.16 is subjected to an eccentric force P of 10 kN with an eccentricity of 500 mm from the CG of the bolts. The centre distance between bolts 1 and 2 is 200 mm, and the centre distance between bolts 1 and 3 is 150 mm. All the bolts are identical. The bolts are made from plain carbon steel 30C8 ($S_{yt}$ = 400 N/mm²) and the factor of safety is 2.5. Determine the size of the bolts. 1 G 2 3 4 Fig. 7.16 e

Name: example 73 the structural connection shown in fig 716 is subjected to an eccentric force p of 10 kn with an eccentricity of 500 mm from the cg of the bolts the centre distance between bolts 26725
Uploaded: 2023-06-30T00:41:46-08:00
Duration: 3 min 16 s
Channel: Madhur L
Description: example 73 the structural connection shown in fig 716 is subjected to an eccentric force p of 10 kn with an eccentricity of 500 mm from the cg of the bolts the centre distance between bolts 26725

          Example 7.3 The structural connection shown
in Fig. 7.16 is subjected to an eccentric force P of
10 kN with an eccentricity of 500 mm from the CG
of the bolts. The centre distance between bolts 1
and 2 is 200 mm, and the centre distance between
bolts 1 and 3 is 150 mm. All the bolts are identical.
The bolts are made from plain carbon steel 30C8
($S_{yt}$ = 400 N/mm²) and the factor of safety is 2.5.
Determine the size of the bolts.
1
G
2
3
4
Fig. 7.16
e

example 73 the structural connection shown in fig 716 is subjected to an eccentric force p of 10 kn with an eccentricity of 500 mm from the cg of the bolts the centre distance between bolts 26725

Added by Magdalena W.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Madhur L

06/30/2023

Step 1

The eccentric force $P = 10 \text{ kN} = 10 \times 10^3 \text{ N}$. Eccentricity $e = 500 \text{ mm}$. Distance between bolts 1 and 2 (horizontal distance) = 200 mm. Distance between bolts 1 and 3 (vertical distance) = 150 mm. Yield strength of the bolt material Show more…

Show all steps
