Question

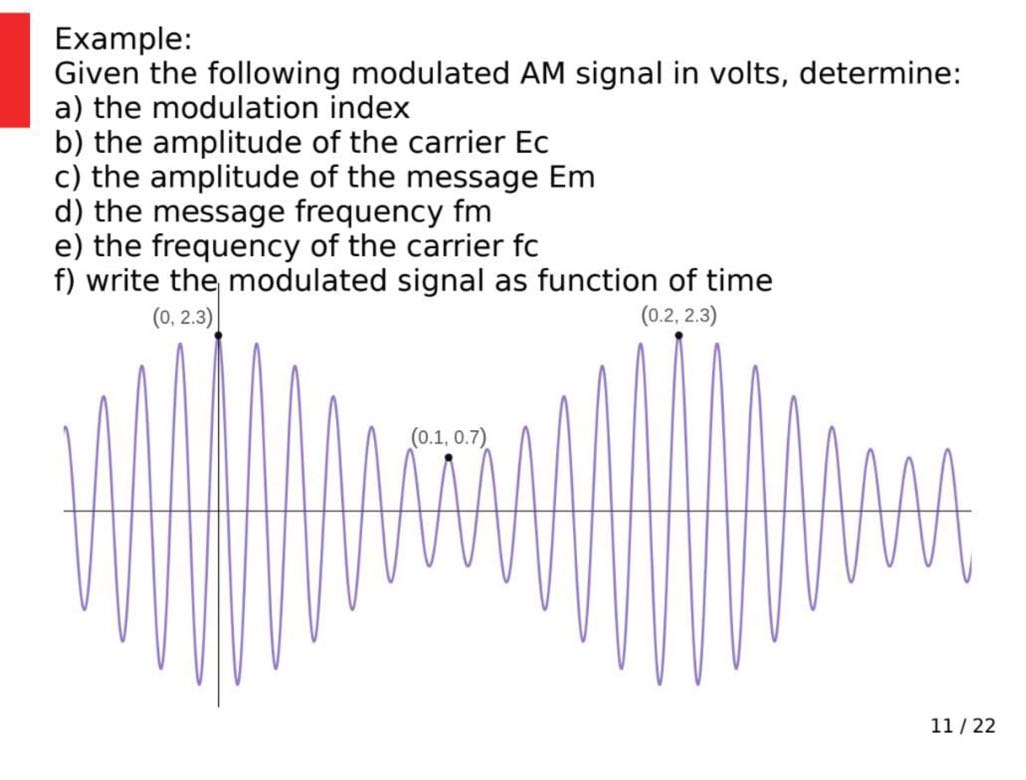

Example: Given the following modulated AM signal in volts, determine: a) the modulation index b) the amplitude of the carrier Ec c) the amplitude of the message Em d) the message frequency fm e) the frequency of the carrier fc f) write the modulated signal as function of time 11 / 22

          Example:
Given the following modulated AM signal in volts, determine:
a) the modulation index
b) the amplitude of the carrier Ec
c) the amplitude of the message Em
d) the message frequency fm
e) the frequency of the carrier fc
f) write the modulated signal as function of time
11 / 22

Example:
Given the following modulated AM signal in volts, determine:
a) the modulation index
b) the amplitude of the carrier Ec
c) the amplitude of the message Em
d) the message frequency fm
e) the frequency of the carrier fc
f) write the modulated signal as function of time
11 / 22

Added by Karen F.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert David Morabito

Step 1

From the graph, the maximum amplitude (A_max) is 2.3 V and the minimum amplitude (A_min) is 0.7 V. Show more…
