Examples (homework) In orthogonal cutting if the depth of cut is 1.25 mm and chip thickness after cutting is 2 mm, determine the following: i. Chip thickness ratio. ii. Shear angle. If rake angle is 10.
Added by Noelia A.
Close
Step 1
Chip thickness ratio (h): The chip thickness ratio is a measure of the ratio between the actual chip thickness (t) and the theoretical chip thickness (t0). It is given by the formula: h = t / t0 The chip thickness ratio depends on various factors such as the Show more…
Show all steps
Your feedback will help us improve your experience
Vishal Gupta and 60 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

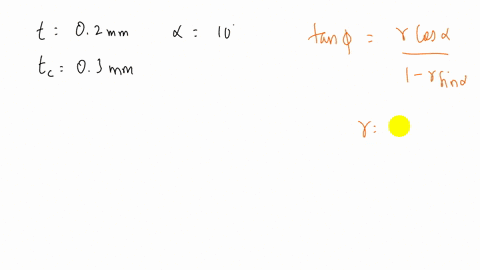

During an orthogonal machining, the following data was generated. Depth of cut - 0.2 mm, Chip thickness- 0.3 mm, Rake angle- 10 degree. Calculate the shear angle. If another material, under same conditions gave chips of 0.5 mm what are the values? Give your conclusion on the two materials.
Mukesh D.
Sri K.

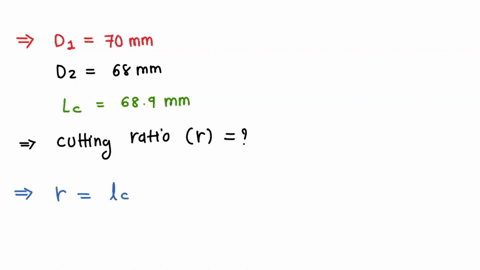

A bar of 70 mm diameter is being cut orthogonally and is reduced to 68 mm by cutting tool in case mean length of the chip is 68.9 mm. find the cutting ratio determine shear angle also if the rake angle is 10 degree.
