EXERCISE 8.16.16: (Chapter 8, Problem 16 in the 8th Edition). Sketch the root locus for a unity-feedback system where $G(s) = \frac{K(s - 2)(s - 3)}{s(s + 2)(s + 3)}$ Then find the following: [Section: 8.5] (a) The breakaway and break-in points (b) The crossing of the $j\omega$-axis (c) The range of $K$ for closed-loop stability (d) The value of $K$ that will result in a stable system with complex conjugate poles and damping factor of 0.5

          EXERCISE

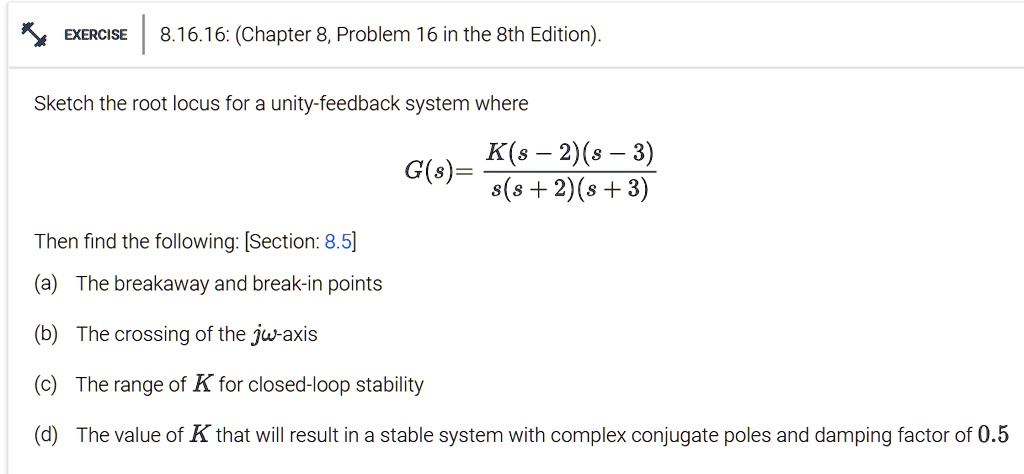

8.16.16: (Chapter 8, Problem 16 in the 8th Edition).
Sketch the root locus for a unity-feedback system where
$G(s) = \frac{K(s - 2)(s - 3)}{s(s + 2)(s + 3)}$
Then find the following: [Section: 8.5]
(a) The breakaway and break-in points
(b) The crossing of the $j\omega$-axis
(c) The range of $K$ for closed-loop stability
(d) The value of $K$ that will result in a stable system with complex conjugate poles and damping factor of 0.5

EXERCISE
8.16.16: (Chapter 8, Problem 16 in the 8th Edition).
Sketch the root locus for a unity-feedback system where
G(s) = (K(s - 2)(s - 3))/(s(s + 2)(s + 3))
Then find the following: [Section: 8.5]
(a) The breakaway and break-in points
(b) The crossing of the jω-axis
(c) The range of K for closed-loop stability
(d) The value of K that will result in a stable system with complex conjugate poles and damping factor of 0.5

Added by Carly C.
