Explain the concept of impedance matching in electrical circuits and its significance in optimizing power transfer between different stages of an electronic system.
Added by Thomas M.
Step 1
Let's think step by step. Show more…
Show all steps
Your feedback will help us improve your experience
Surendra Kumar and 88 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Impedance matching. Example 28.2 showed that maximum power is transferred when the internal resistance of a DC source is equal to the resistance of the load. A transformer may be used to provide maximum power transfer between two AC circuits that have different impedances Z1 and Z2, where 1 and 2 are subscripts and the Z’s are italic (as in the centered equation). (a) Show that the ratio of turns $N_{1} / N_{2}$ needed to meet this condition is $$\frac{N_{1}}{N_{2}}=\sqrt{\frac{Z_{1}}{Z_{2}}}$$ (b) Suppose you want to use a transformer as an impedance-matching device between an audio amplifier that has an output impedance of 8.00 $\mathrm{k} \Omega$ and a speaker that has an input impedance of 8.00$\Omega$ . What should your $N_{1} / N_{2}$ ratio be?
Surendra K.

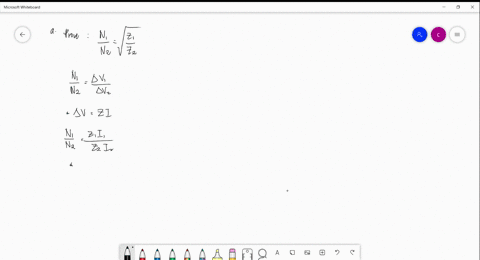

A transformer may be used to provide maximum power transfer between two AC circuits that have different impedances $Z_{1}$ and $Z_{2}$ . This process is called impedance matching. (a) Show that the ratio of turns $N_{1} / N_{2}$ for this transformer is $$\frac{N_{1}}{N_{2}}=\sqrt{\frac{Z_{1}}{Z_{2}}}$$ (b) Suppose you want to use a transformer as an impedance-matching device between an audio amplifier that has an output impedance of 8.00 $\mathrm{k} \Omega$ and a speaker that has an input impedance of $8.00 \Omega .$ What should your $N_{1} / N_{2}$ ratio be?
Cyra Jelle C.
A transformer may be used to provide maximum power transfer between two AC circuits that have different impedances $Z_{1}$ and $Z_{2}$. This process is called impedance matching. (a) Show that the ratio of turns $N_{1} / N_{2}$ for this transformer is $$\frac{N_{1}}{N_{2}}=\sqrt{\frac{\overline{\mathrm{Z}}_{1}}{\mathrm{Z}_{2}}}$$ (b) Suppose you want to use a transformer as an impedance-matching device between an audio amplifier that has an output impedance of $8.00 \mathrm{k} \Omega$ and a speaker that has an input impedance of $8.00 \Omega .$ What should your $N_{1} / N_{2}$ ratio be?
Adi S.
