Explain the effect of Heat Addition on Subsonic Flow in a constant area duct. Why is the static temperature higher than T* just prior to Thermal Choking?
Added by Jordi N.
Step 1
This increase in temperature causes the air molecules to move faster, leading to an increase in the flow velocity. Show more…
Show all steps
Your feedback will help us improve your experience
Dading Chen and 86 other Physics 103 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

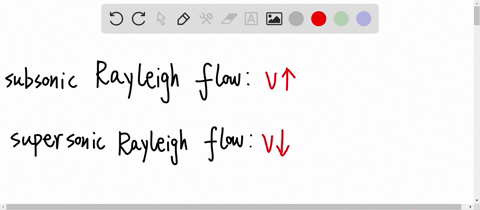

What is the effect of heating the fluid on the flow velocity in subsonic Rayleigh flow? Answer the same questions for supersonic Rayleigh flow.
Air enters a frictionless, constant area duct with $\mathrm{Ma}_{1}$ $=2.0, T_{0,1}=59^{\circ} \mathrm{F},$ and $p_{0,1}=14.7$ psia. The air is decelerated by heating until a normal shock wave occurs where the local Mach number is $1.5 .$ Downstream of the normal shock, the subsonic flow is accelerated with heating until it chokes at the duct exit. Determine the static temperature and pressure, the stagnation temperature and pressure, and the fluid velocity at the duct entrance, just upstream and downstream of the normal shock, and at the duct exit. Sketch the temperature-entropy diagram for this flow.
Air enters a frictionless, constant area duct with Ma $=2.5, T_{0}=20^{\circ} \mathrm{C},$ and $p_{0}=101 \mathrm{kPa}(\mathrm{abs}) .$ The gas is decelerated by heating until a normal shock occurs where the local Mach number is $1.3 .$ Downstream of the shock, the subsonic flow is accelerated with heating until it exits with a Mach number of 0.9 Determine the static temperature and pressure, the stagnation temperature and pressure, and the fluid velocity at the duct entrance, just upstream and downstream of the normal shock, and at the duct exit. Sketch the temperature-entropy diagram for this flow.
