FARADAY’S LAW OF INDUCTION – Part A, Value and moving direction of the voltmeter dial. Magnetic field direction inside the loop; Magnitude increasing or decreasing. Direction of the electron’s motion inside the loop.
Added by Vickie C.
Step 1
If the magnetic field is directed into the page (or screen), it is considered to be in the negative z-direction. If it is directed out of the page, it is in the positive z-direction. Show more…
Show all steps
Your feedback will help us improve your experience
Timothy James and 78 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

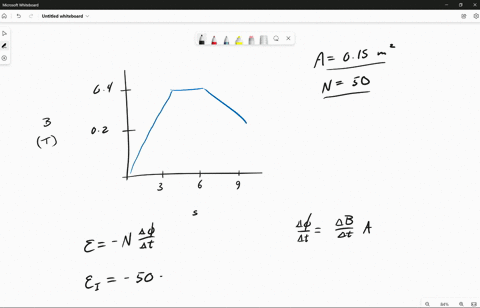

Section 22.4 Faraday's Law of Electromagnetic Induction 18. A magnetic field passes through a stationary wire loop, and its magnitude changes in time according to the graph in the drawing. The direction of the field remains constant, however. There are three equal time intervals indicated in the graph: 0-3.0 s, 3.0-6.0 s, and 6.0-9.0 s. The loop consists of 50 turns of wire and has an area of 0.15 m². The magnetic field is oriented parallel to the normal to the loop. For purposes of this problem, this means that φ = 0° in Equation 22.2. (a) For each interval, determine the induced emf. (b) The wire has a resistance of 0.50 Ω. Determine the induced current for the first and third intervals.
Timothy J.
(Ch. 25.4) What is the direction of the electric current in the loop as viewed from the top if a magnet is pushed toward the loop as shown in the figure? What is the current direction in the loop if the magnet if flipped and pushed toward the loop? Explain your answers. 3) (lab manual, Ch. 25.4) Copy the definition of Faraday's law for an N-turn coil (Equations 25.11 and 25.12) and cite all variable definitions and SI units. If the area under an emf versus time curve is 1.5 V·s for a 10-turn coil, what is magnitude of the change in magnetic flux in the time interval (in weber, Wb)?
Vishal G.
A metal loop is placed in a perpendicular magnetic field as sketched in Eigure $\mathrm{P} 21.16$. a. We wish to find the induced current through the loop. What closed path and which corresponding area should we choose for the application of Faraday's law? b. What is the direction of the magnetic flux through the area chosen in part (a)? That is, is the flux upward (out of the plane of the figure) or downward (into the plane)? c. If the magnitude of $B$ is increasing with time, is this flux increasing or decreasing with time? d. What is the direction of the magnetic field produced by the induced current? e. Will the induced current in the loop be clockwise or counterclockwise?
