Fig. P3.4 shows an electromagnet system for lifting a section of steel channel. The coil has 600 turns. The reluctance of the magnetic material can be ne- glected up to a flux density of 1.4 tesla. (a) For a coil current of 15 A (dc) determine the maximum air gap g for which the flux density is 1.4 tesla. (b) For the air gap in part (a), determine the force on the steel channel. (c) The steel channel has a mass of 1000 kg. For a coil current of 15 A, determine the largest gap at which the steel channel can be lifted magneti- cally against the force of gravity (9.81 m/secĀ²).
Added by Andrew O.
Close
Step 1
- The coil has 600 turns. - The current through the coil is 15 A (DC). - The magnetic material's reluctance can be neglected up to a flux density of 1.4 Tesla. - The dimensions of the steel channel and the electromagnet setup are given, but for part (a), we Show moreā¦
Show all steps
Your feedback will help us improve your experience
Narayan Hari and 89 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Adi S.

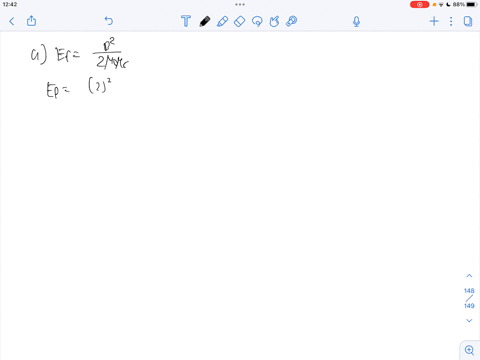

An electromagnet has a cross section of 20 mm x 30 mm. The relative permeability of the magnetic material is Ī¼ = 750. Its coil has N = 1000 turns. Find: ā¢ The mass that can be lifted if a flux density B = 2 T is generated. ā¢ The magnetic field energy density. ā¢ The magnetic flux Ī¦. ā¢ The magnetic field strength assuming no air gap. ā¢ The required current I to generate the desired field strength if the length of the magnetic circuit assuming no air gap is 50 mm. The permeability of free space Ī¼ā = 4Ļ Ć 10ā»ā· HĀ·mā»Ā¹. The acceleration of gravity is g = 9.8 m/sĀ².
