Question

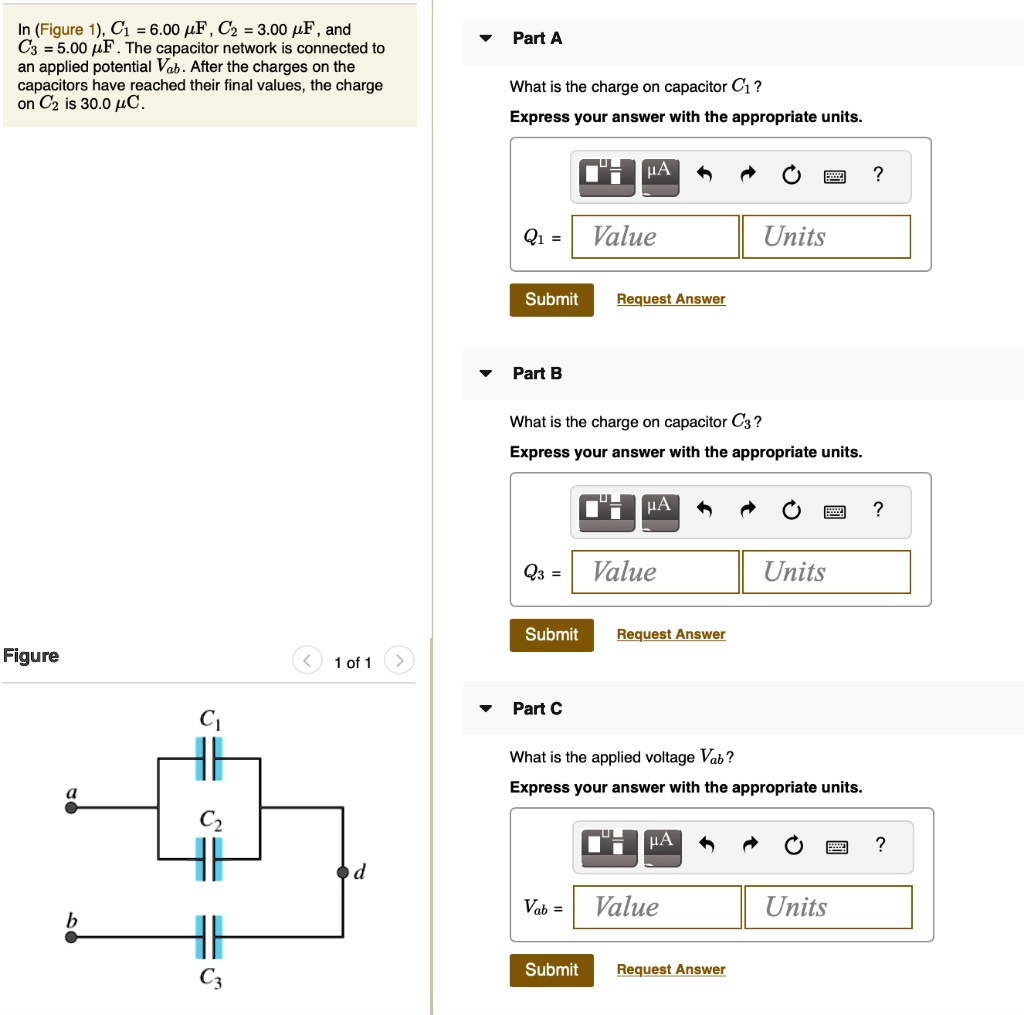

In (Figure 1), C_1 = 6.00 ?F, C_2 = 3.00 ?F, and C_3 = 5.00 ?F. The capacitor network is connected to an applied potential V_ab. After the charges on the capacitors have reached their final values, the charge on C_2 is 30.0 ?C. Part A What is the charge on capacitor C_1? Express your answer with the appropriate units. Q_1 = Part B What is the charge on capacitor C_3? Express your answer with the appropriate units. Q_3 = Part C What is the applied voltage V_ab? Express your answer with the appropriate units. V_ab =

          In (Figure 1), C_1 = 6.00 ?F, C_2 = 3.00 ?F, and C_3 = 5.00 ?F. The capacitor network is connected to an applied potential V_ab. After the charges on the capacitors have reached their final values, the charge on C_2 is 30.0 ?C.
Part A
What is the charge on capacitor C_1?
Express your answer with the appropriate units.
Q_1 =
Part B
What is the charge on capacitor C_3?
Express your answer with the appropriate units.
Q_3 =
Part C
What is the applied voltage V_ab?
Express your answer with the appropriate units.
V_ab =

Show more…

In (Figure 1), C1 = 6.00 ?F, C2 = 3.00 ?F, and C3 = 5.00 ?F. The capacitor network is connected to an applied potential Vab. After the charges on the capacitors have reached their final values, the charge on C2 is 30.0 ?C.
Part A
What is the charge on capacitor C1?
Express your answer with the appropriate units.
Q1 =
Part B
What is the charge on capacitor C3?
Express your answer with the appropriate units.
Q3 =
Part C
What is the applied voltage Vab?
Express your answer with the appropriate units.
Vab =

Added by John M.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Timothy James

04/07/2023

Step 1

Since C2 and C3 are in series, we can find their equivalent capacitance (C23) using the formula for capacitors in series: $\frac{1}{C_{23}} = \frac{1}{C_2} + \frac{1}{C_3}$ $\frac{1}{C_{23}} = \frac{1}{3.00\,\text{pF}} + \frac{1}{5.00\,\text{pF}}$ Now, we can Show more…
