Figure 17-31. How can you have more heat transfer when you insulate your pipe with the insulator thickness r < r_er?
Added by Ver-Nica C.
Close
Step 1
When you insulate a pipe, the purpose is to reduce heat transfer from the pipe to the surroundings or vice versa. Show more…
Show all steps
Your feedback will help us improve your experience
Gopal Sharma and 65 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

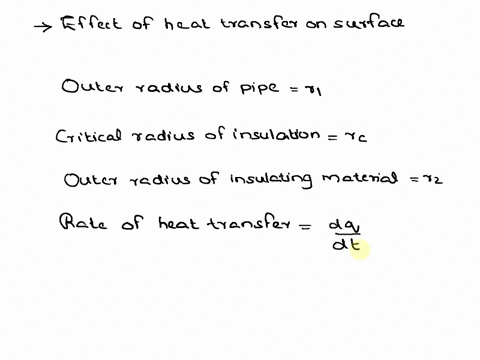

A pipe is insulated such that the outer radius of the insulation is less than the critical radius. Now the insulation is taken off. Will the rate of heat transfer from the pipe increase or decrease for the same pipe surface temperature?
Madhur L.
Adi S.

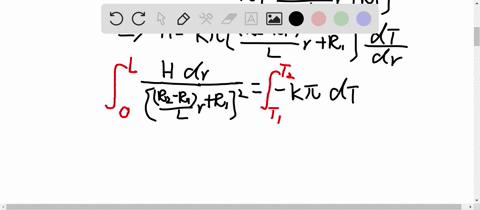

Use the method outlined in Problem 76 to show that the steady heat-flow rate in the direction of the axis of a truncated cone with conductivity $k,$ faces of radii $R_{1}$ and $R_{2},$ and length $L$ is $H=\pi k R_{1} R_{2}\left(T_{1}-T_{2}\right) / L .$ Here, $T_{1}$ and $T_{2}$ are the temperatures on the two faces, and insulation prevents any heat flow out the sides (Fig. 16.17 ). (FIGURE CANNOT COPY)
