Question

Figure 12 shows a DC electric circuit. (a) How many meshes are there in the circuit? (1 mark) (b) How many simultaneous equations are required to establish in the mesh analysis? (1 mark) (c) By using the mesh analysis, find all the mesh currents in the circuit. Take all the mesh currents in clockwise directions. (9 marks) (d) Simplify the circuit into its corresponding Thevenin equivalent circuit for the resistor M. Hence, find its power. (9 marks) 5 ? 2 ? 4 A M (?) 3 ? 1 ? 2 V Figure 12.

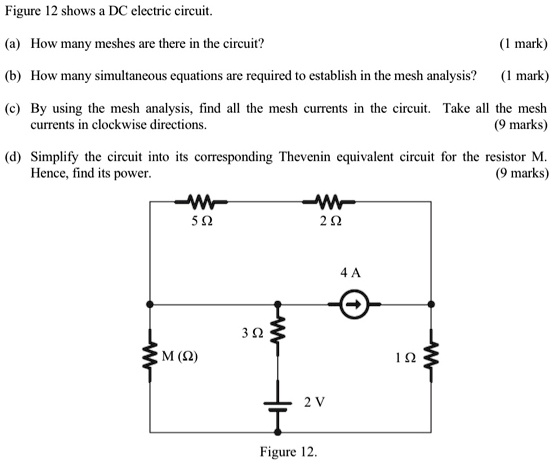

          Figure 12 shows a DC electric circuit.

(a) How many meshes are there in the circuit? (1 mark)

(b) How many simultaneous equations are required to establish in the mesh analysis? (1 mark)

(c) By using the mesh analysis, find all the mesh currents in the circuit. Take all the mesh currents in clockwise directions. (9 marks)

(d) Simplify the circuit into its corresponding Thevenin equivalent circuit for the resistor M. Hence, find its power. (9 marks)

5 ?
2 ?
4 A
M (?)
3 ?
1 ?
2 V
Figure 12.

Figure 12 shows a DC electric circuit.

(a) How many meshes are there in the circuit? (1 mark)

(b) How many simultaneous equations are required to establish in the mesh analysis? (1 mark)

(c) By using the mesh analysis, find all the mesh currents in the circuit. Take all the mesh currents in clockwise directions. (9 marks)

(d) Simplify the circuit into its corresponding Thevenin equivalent circuit for the resistor M. Hence, find its power. (9 marks)

5 ?
2 ?
4 A
M (?)
3 ?
1 ?
2 V
Figure 12.

Added by Joshua P.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Krishna G

02/18/2022

Step 1

However, the steps will guide you through solving a typical problem of this nature. ### Identifying Meshes and Required Equations ** Show more…

Show all steps

Thanks for your feedback!

Figure 12 shows a DC electric circuit. (a) How many meshes are there in the circuit? (b) How many simultaneous equations are required to establish in the mesh analysis? (c) By using the mesh analysis, find all the mesh currents in the circuit. Take all the mesh currents in clockwise directions. (d) Simplify the circuit into its corresponding Thevenin equivalent circuit for the resistor M. Hence, find its power.
