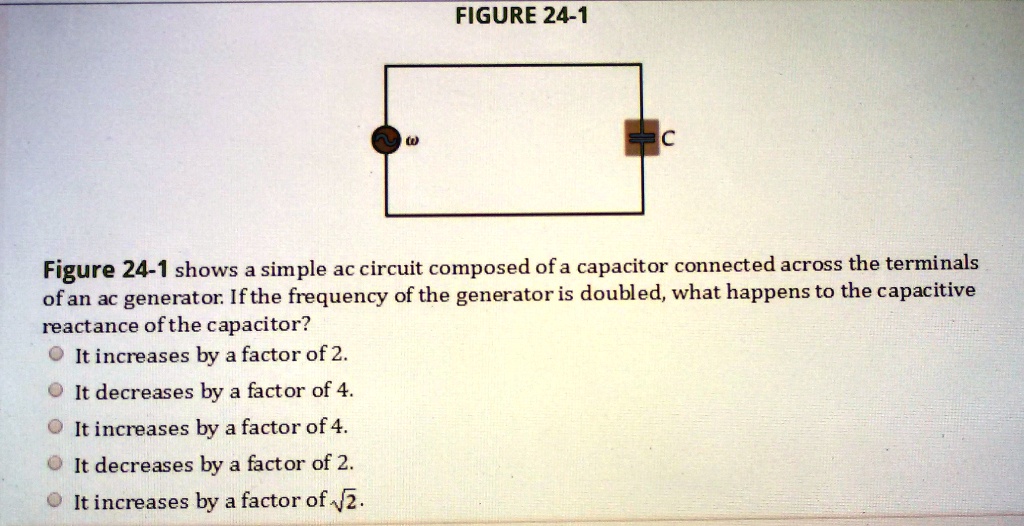

FIGURE 24-1 Figure 24-1 shows a simple ac circuit composed of a capacitor connected across the terminals of an ac generator. If the frequency of the generator is doubled, what happens to the capacitive reactance of the capacitor? It increases by a factor of 2. It decreases by a factor of 4. It increases by a factor of 4. It decreases by a factor of 2. It increases by a factor of ?2.
Added by Elizabeth V.
Close
Step 1
Step 1: The capacitive reactance of a capacitor in an AC circuit is given by the formula \(X_C = \frac{1}{2\pi f C}\), where \(f\) is the frequency of the AC generator and \(C\) is the capacitance of the capacitor. Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 85 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

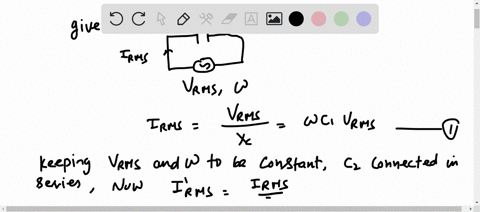

A capacitor (capacitance C1) is connected across the terminals of an AC generator. Without changing the voltage or frequency of the generator, a second capacitor (capacitance C2) is added in series with the first one. As a result, the current delivered by the generator decreases by a factor of three. Suppose that the second capacitor had been added in parallel with the first one, instead of in series. By what factor would the current delivered by the generator have increased?
Khoobchandra A.

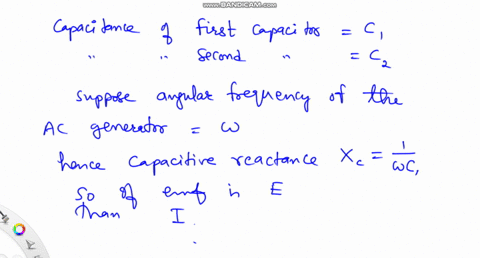

A capacitor (capacitance $C_{1} )$ is connected across the terminals of an ac generator. Without changing the voltage or frequency of the generator, a second capacitor (capacitance $C_{2}$ ) is added in series with the first one.
Vishal G.
A capacitor (capacitance $C_{1}$ ) is connected across the terminals of an ac generator. Without changing the voltage or frequency of the generator, a second capacitor (capacitance $C_{2}$ ) is added in series with the first one. As a result, the current delivered by the generator decreases by a factor of three. Suppose that the second capacitor had been added in parallel with the first one, instead of in series. By what factor would the current delivered by the generator have increased?
