Question

8 kN 30 N/mm 100 mm 0 N/mm A B C 1200 mm 800 mm cross-section (not to scale) 5 mm 100 mm 5 mm 50 mm

          8 kN
30 N/mm
100 mm
0 N/mm
A
B
C
1200 mm
800 mm
cross-section
(not to scale)
5 mm
100 mm
5 mm
50 mm

Added by Allen T.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Adi S

07/12/2023

Step 1

Since the beam is fixed at C, it will have a vertical reaction force \( R_C \), a moment \( M_C \), and a horizontal reaction force \( H_C \). However, there are no horizontal loads, so \( H_C = 0 \). Show more…

Show all steps

Thanks for your feedback!

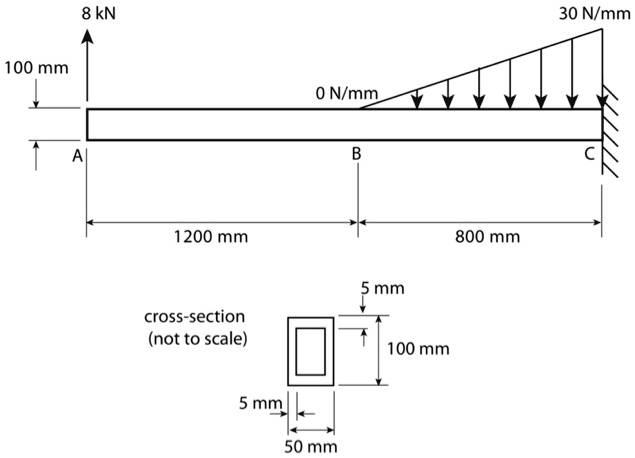

Figure 3 shows a cantilever beam ABC with a fixed support at C, loaded with a concentrated 8 kN force at A and a linearly distributed load varying from zero to 30 N/mm between B and C. The cross-section, also shown in the figure, is a hollow rectangle. The material has a Young's Modulus of 200 GPa. Calculate: (i) The internal shear forces and bending moments along the beam. (ii) The maximum bending stresses. (iii) The displacement of point A.
