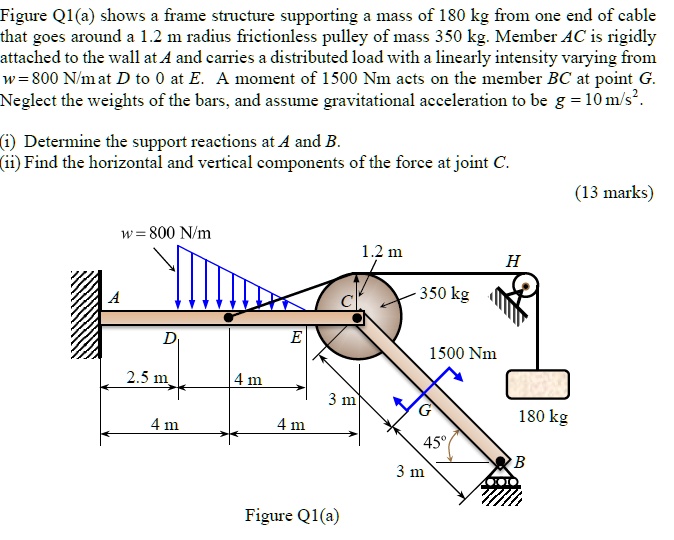

Figure Q1(a) shows a frame structure supporting a mass of 180 kg from one end of cable that goes around a 1.2 m radius frictionless pulley of mass 350 kg. Member AC is rigidly attached to the wall at A and carries a distributed load with a linearly intensity varying from w = 800 N/m at D to 0 at E. A moment of 1500 Nm acts on the member BC at point G. Neglect the weights of the bars, and assume gravitational acceleration to be g = 10 m/s^2. (i) Determine the support reactions at A and B. (ii) Find the horizontal and vertical components of the force at joint C. (13 marks)
Added by Paul W.
Close
Step 1
The force due to the mass of 180 kg is F1 = 180 kg * 10 m/s^2 = 1800 N. This force is acting downwards at the end of the cable. The force due to the mass of the pulley is F2 = 350 kg * 10 m/s^2 = 3500 N. This force is acting downwards at the center of the Show more…
Show all steps
Your feedback will help us improve your experience
Sahil Kumar and 87 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Supreeta N.

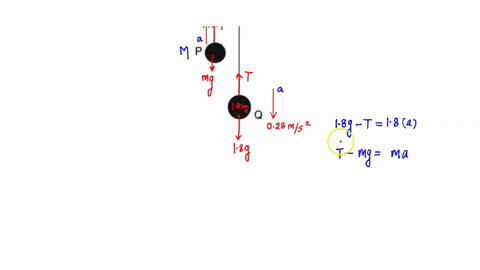

(a) Figure 1 shows two particles P and Q which are connected by a light inextensible string over a smooth pulley. P has mass M kg and Q has mass 1.8 kg. The system is released from rest and Q moves downwards with acceleration 0.28 ms⁻². Find the value of M and the tension in the string. (b) Figure 2 shows a block of mass 16 kg being pulled along a smooth horizontal surface by a light inextensible rope which is inclined at 30° to the horizontal. The tension in the rope is 20 Newtons. The block starts from rest at point A, and it reaches point B after 8√3 seconds. i. Find the speed of the block when it reaches point B. The surface beyond point B is rough. The tension in the rope is kept at 20 Newtons but the block now travels at a constant speed. ii. Find the coefficient of friction between the block and the surface beyond point B.
Sahil K.
Problem 1 (30 points) In the system shown in the figure, the two blocks have masses m1 = 10 kg and m2 = 15 kg, respectively, and are connected with a very light and non-stretchable string wrapped around a pulley with a moment of inertia of 0.08 kg·m^2. The pulley can rotate without friction about its axis through the center, and block 2 is on a frictionless surface. When block 2 is pulled with a force F = 200 N, it starts accelerating to the right at 3.0 m/s^2. A) Draw below and label the forces acting on each block. Use T1 for tension on the vertical string and T2 for tension on the horizontal string. Block 1: Block 2: Pulley: B) Find the magnitude of tension on the horizontal string, tension on the vertical string, and the radius R of the pulley. Use the coordinate system shown in the picture and CCW as positive for rotational motion. T1: T2: R:
Penny R.
