3. Figure shows the electric field lines in the vicinity of two equal positive point charges. a) Rank the magnitudes of the electric field at points A, B, and C shown in Figure (greatest magnitude first). Explain. b) Draw the electric field lines of the uniform electric field.

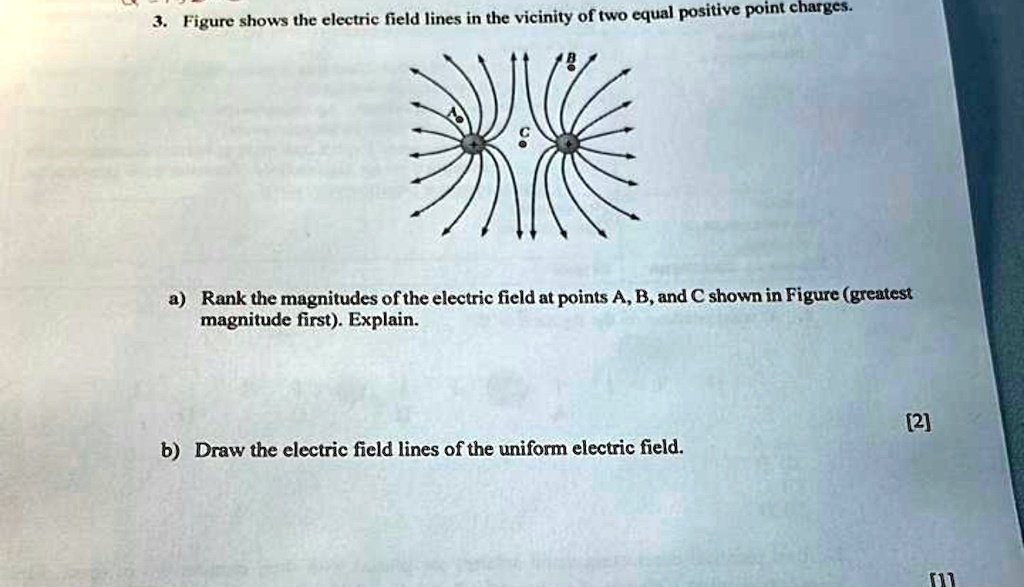

          3. Figure shows the electric field lines in the vicinity of two equal positive point charges.
a) Rank the magnitudes of the electric field at points A, B, and C shown in Figure (greatest magnitude first). Explain.
b) Draw the electric field lines of the uniform electric field.

3. Figure shows the electric field lines in the vicinity of two equal positive point charges.
a) Rank the magnitudes of the electric field at points A, B, and C shown in Figure (greatest magnitude first). Explain.
b) Draw the electric field lines of the uniform electric field.

Added by Edward C.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Madhur L

08/15/2023

Step 1

The electric field lines are closer together at point A, indicating a stronger field. - Point B is further away from the charges compared to point A, so the electric field strength at point B will be less than at point A but greater than at point C. - Point C is Show more…
