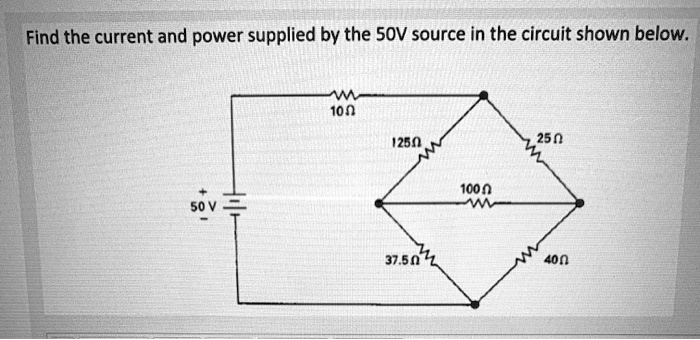

Find the current and power supplied by the 50V source in the circuit shown below. +\ 50 V 10 Omega 125 Omega 37.5 Omega 100 Omega 25 Omega 40 Omega
Added by Daniel P.
Close
Step 1
From the given circuit, we can see that there are two resistors connected in parallel (the 100Ω and 1250Ω resistors). To find the total resistance of these two resistors in parallel, we can use the formula: 1/RTotal = 1/R1 + 1/R2 where R1 and R2 are the Show more…
Show all steps
