Find the discharge through the pipeline in Fig: 5.37 for H = 30 ft, and determine the head loss H for Q = 2.0 cfs. 6 in. diam clean cast iron pipe H=30 ft Water 40 ft Globe valve Standard elbows 100 ft Square-edged entrance 200 ft
Added by Sierra Y.
Step 1
The cross-sectional area of the pipe is 6 in. diam. Show more…
Show all steps
Your feedback will help us improve your experience
Sri K and 60 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

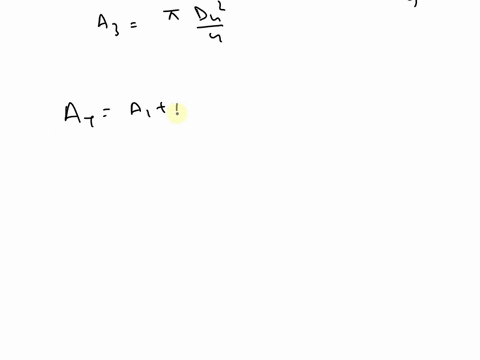

Given the parallel pipe system below, calculate a) the discharge through each branch given that all pipes are made of cast iron and the fluid flowing is water at 20 °C. b) the velocity, Reynolds number, and friction factor for each branch (use Darcy-Weisbach). c) the total head loss in the system, in m. L1 = 500 m; D1 = 50 cm Q = 2.0 m3/s L2 = 200 m; D2 = 30 cm A B L3 = 300 m; D3 = 15 cm
Supreeta N.

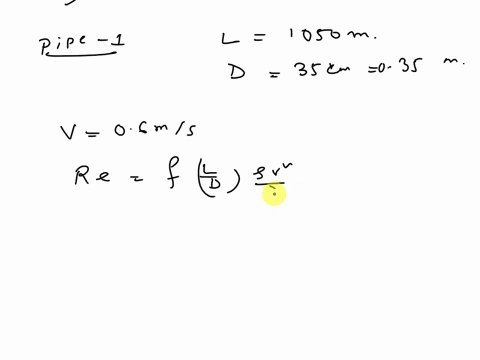

9.9 - The pipes in the system shown in Fig (9.9) are all cast iron. a) With a flow of 0.6 mÂł/s, find the head loss from A to D. b) What should be the diameter of a single pipe from B to C such that it replaces pipes 2, 3, and 4 without altering the capacity for the same head loss from A to D?
Madhur L.

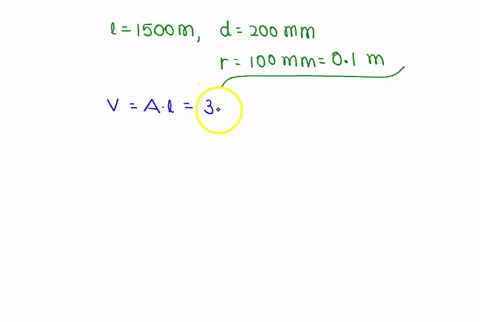

'A 250-mm dia. pipeline 1,500 meters long contains a gate valve which is three-quarters open. The pipeline also contains the following bends: 2 - 459,2 909, and 1 - 1809, all of which have the same radius of curvature of 600mm Calculate the total head loss in the pipeline if the discharge is 75 L/s Use n = 0.012.'
Sri K.
