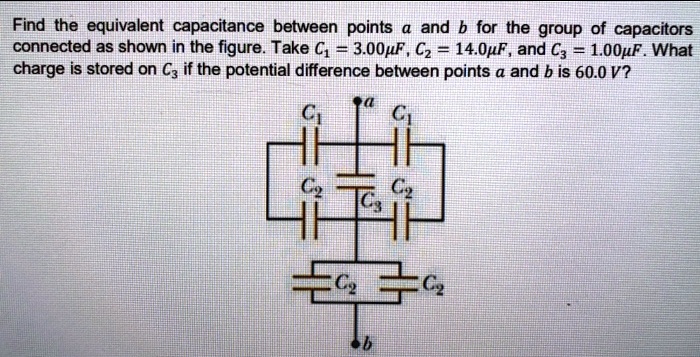

Hello students in this question we need to find out the capacitance between two points a and b we have the first capacitance c1 this is connected in this setup, right this setup and then we have an internal capacitance c3.
00:22
This is c2 and this is c2 and this is c3 it's further down connected to a setup of two capacitors so this if you look closely, these are all parallel so this is parallel again c2.
00:46
So we have to find out the effective capacitance so c1 is equal to 3 micro farad c2 is equal to 14 micro farad and c3 is equal to 1 micro farad so capacitors in general in series connection series capacitance will be equal to 1 by c1 plus 1 by c2 plus etc in parallel connections c1 c is equal to c1 plus c2 plus c3 etc.
01:24
This is all you need to know so now we can now connect all these things so we have two series here c1 and c1 so you get a total of 2 c1 so 2 c1 in parallel not 2 c1.
01:39
This is in series so you get 1 by c1 plus 1 by c1 that is equal to 2 by c1 so that is c1 by 2 is the effective c similarly this also gives you c2 by 2 and this is also parallel this is parallel so you can add it.
01:58
So that is this is 2 c2.
02:01
This is 2 c2 this is c2 by 2 and this is c1 by 2 right so c1 by 2 and c2 this these are both parallel so you'll get c1 by 2 plus c1 by 2 so that plus c2 by 2 is the total capacitance over here.
02:22
So this is in series with this setup...
