1. Find the equivalent capacitance of the combination of capacitors between the points A and B as shown in figure. Also calculate the total charge that flows in the circuit when a 100 V battery is connected between the points A and B
Added by Leah M.
Close
Step 1
Looking at the figure (which is not provided here), we can see that capacitors C1 and C2 are in series. The equivalent capacitance (Cs) of a series combination is given by the formula: 1/Cs = 1/C1 + 1/C2 Similarly, if capacitors C3 and C4 are in parallel, Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 78 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

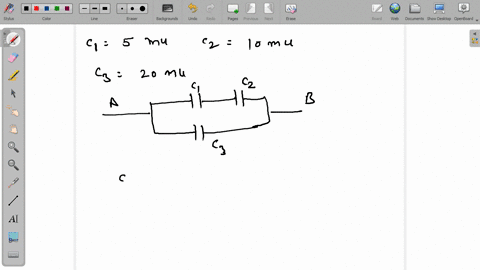

(a) Find the equivalent capacitance between points a and b for the group of capacitors connected as shown in Figure 2 if C1= 5mu F, C2=10mu F, and C3= 20mu F. (b) If the potential difference between points a and b is 60V, what charge is stored on?
Ranjeet S.
(a) Find the equivalent capacitance between points a and b for the group of capacitors connected as shown in Figure 2 if C1= 5?F, C2=10?F, and C3= 20?F. (b) If the potential difference between points a and b is 60V, what charge is stored on?
Pritesh R.

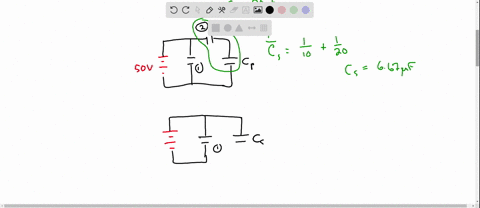

(a) Find the equivalent capacitance of the four identical capacitors shown in Figure GPl 6.94, measured between points A and $\mathrm{B},$ if $C=10 \mu \mathrm{F} .(\mathrm{b})$ If a $50-\mathrm{V}$ battery is connected across $\mathrm{A}$ and $\mathrm{B}$, what's the charge on each capacitor?
