Find the equivalent resistance of the following circuit if R1 = 4.0 Ω, R2 = 8.0 Ω, R3 = 6.0 Ω, and R4 = 12.0 Ω. Please show all steps!
Added by Olga C.
Step 1
In this case, R1 and R2 are connected in series, and their combination is connected in parallel with R3. Then, the combination of these three resistors is connected in series with R4. Show more…
Show all steps
Your feedback will help us improve your experience
Sri K and 101 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Determine the equivalent resistance of the resistors shown in (Figure 1) if R1 = 60 ?, R2 = 30 ?, R3 = 20 ?, R4 = 20 ?, R5 = 60 ?, R6 = 20 ?, and R7 = 60 ? .
Adi S.

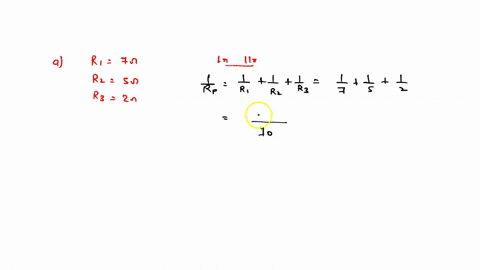

Determine the equivalent (total) resistance for each of the following circuits below. 1/Req = 1/R1 + 1/R2 + 1/R3 = 1/7 + 1/5 + 1/2 = 59/70 Req = 70/59 = 1.2̦ Req = R1 + R2 = 2 + 5 Req = 7̦ Req = R1 + R2 + R3 = 2 + 5 + 7 Req = 14̦
Iksha T.
Calculate the total resistance of a circuit containing three resistors wired in parallel when R1 = 100 Ω, R2 = 200 Ω, and R3 = 50 Ω. Consider that you slightly alter the previous circuit so that R1 and R2 are still in parallel, but R3 is now in series with the previous two. What is the total resistance of this circuit?
