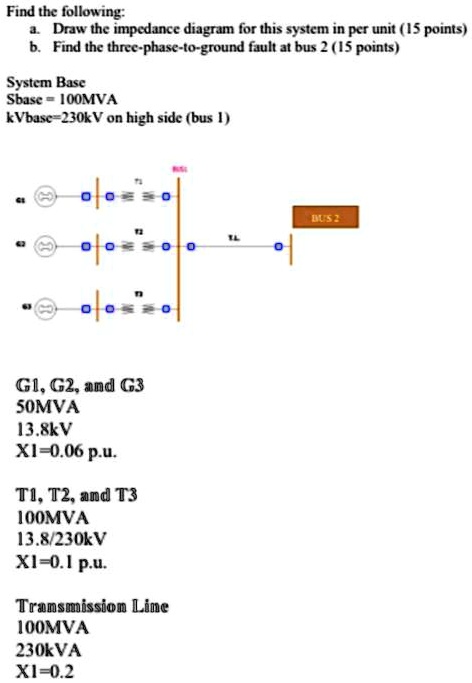

Find the following: a. Draw the impedance diagram for this system in per unit (15 points) b. Find the three-phase-to-ground fault at bus 2 (15 points) System Base Sbase = 100MVA kVbase = 230kV on high side (bus 1) G1, G2, and G3 50MVA 13.8kV X1 = 0.06 p.u. T1, T2, and T3 100MVA 13.8/230kV X1 = 0.1 p.u. Transmission Line 100MVA 230kVA X1 = 0.2

          Find the following:
a. Draw the impedance diagram for this system in per unit (15 points)
b. Find the three-phase-to-ground fault at bus 2 (15 points)
System Base
Sbase = 100MVA
kVbase = 230kV on high side (bus 1)
G1, G2, and G3
50MVA
13.8kV
X1 = 0.06 p.u.
T1, T2, and T3
100MVA
13.8/230kV
X1 = 0.1 p.u.
Transmission Line
100MVA
230kVA
X1 = 0.2

Find the following:
a. Draw the impedance diagram for this system in per unit (15 points)
b. Find the three-phase-to-ground fault at bus 2 (15 points)
System Base
Sbase = 100MVA
kVbase = 230kV on high side (bus 1)
G1, G2, and G3
50MVA
13.8kV
X1 = 0.06 p.u.
T1, T2, and T3
100MVA
13.8/230kV
X1 = 0.1 p.u.
Transmission Line
100MVA
230kVA
X1 = 0.2
