Find the horizontal component of the force exerted on the beam at the wall. Express your answer with the appropriate units. $N_H$ = Value Units
Added by Jennifer C.
Close
Step 1
In this case, the beam is likely supported by a hinge or pin at the wall, which exerts a vertical force (Nv) and a horizontal force (Nh) on the beam. Show more…
Show all steps
Your feedback will help us improve your experience
Shaiju T and 92 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

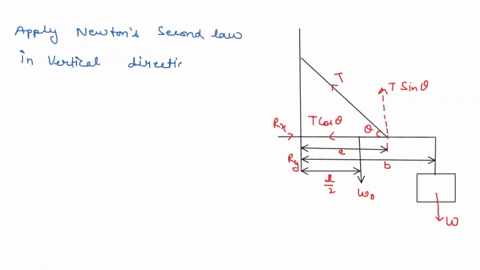

Find the vertical force exerted by the hinge on the beam at the wall. Express your answer to three significant figures and include the appropriate units. Enter positive value if the force is upward and negative value if the force is downward. FHy = Value Units
Shaiju T.

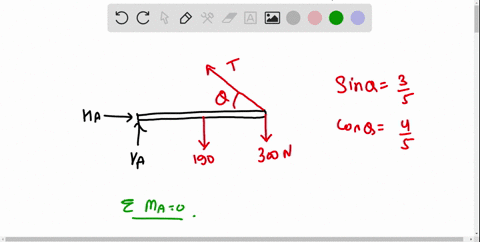

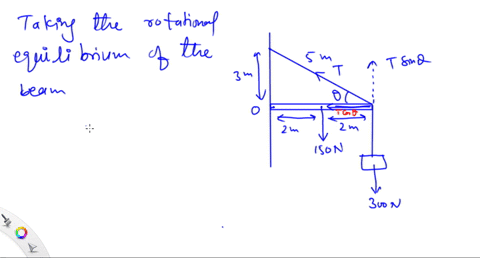

The horizontal beam in (Figure 1) weighs 190 N, and its center of gravity is at its center. Find the horizontal component of the force exerted on the beam at the wall. Express your answer to three significant figures and include the appropriate units. NH = Part C Find the vertical component of the force exerted on the beam at the wall. Express your answer to three significant figures and include the appropriate units. NV =
