Find the impedance $Z_{ab}$ in the circuit below if $Z_L = 1000 \, \Omega$ a 1:10 $Z_{ab}$ $Z_L$ Ideal b a. $10 \, \Omega$ b. none of these c. $1000 \, \Omega$ d. $100 \, \Omega$ e. $10000 \, \Omega$
Added by Kirsten R.
Close
Step 1
The impedance seen from the primary side ($Z_{ab}$) is related to the impedance on the secondary side ($Z_L$) by the square of the turns ratio. Show more…
Show all steps
Your feedback will help us improve your experience
Narayan Hari and 89 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
In the adjoining figure the impedance of the circuit will be(a) $120 \Omega$ (b) $50 \Omega$ (c) $60 \Omega$ (d) $90 \Omega$
A $200-\Omega$ resistor, a $40.0-\mathrm{mH}$ inductor and a $3.0-\mu \mathrm{F}$ capacitor are connected in series with a source of time-varying emf that provides $10.0 \mathrm{~V}$ at a frequency of $1000 \mathrm{~Hz}$. What is the impedance of the circuit? a) $200 \Omega$ b) $228 \Omega$ c) $342 \Omega$ d) $282 \Omega$

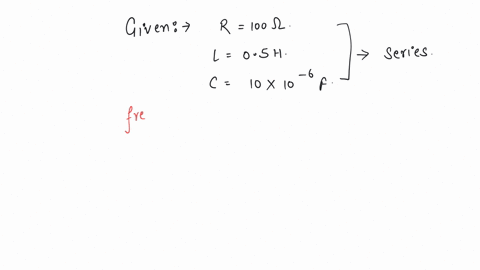

If resistance of 100 ohm , inductance of 0.5 henry and capacitance of 10* 10^-6 F are connected in series through 50 Hz ac supply, then impedance is (a) 1.876 (b) 18.76 (c) 189.72 (d) 101.3
