Find the potential difference across each resistor shown on the given circuit. (Show every step) (Hint: Remember in order to find the voltage you have to first find the current) 24 V 6 V 36 V 10 ? 8 ? 4 ? 6 ?
Added by Juana C.
Close
Step 1
Step 1: Apply Kirchhoff's voltage law in loop 1: - Starting from the 36 V battery: -36 V - Moving along the 4 ohm resistor in the direction of the current: -4A - Moving along the 6 V battery in the direction of the current: -6A - Moving along the 8 ohm resistor in Show more…
Show all steps
Your feedback will help us improve your experience
Supratim Pal and 87 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Find the current through and the potential difference across each resistor in Figure $\mathrm{P} 23.28$.

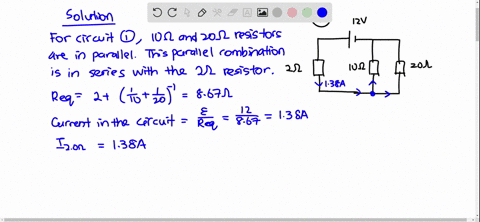

Find the current in, and potential difference across, each resistor in the circuits shown in Figure 5.28
