Question

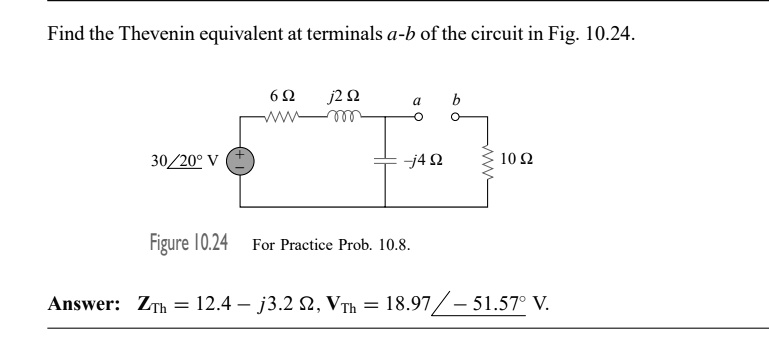

Find the Thevenin equivalent at terminals a-b of the circuit in Fig. 10.24. 30?20° V 6 ? j2 ? a b -j4 ? 10 ? Figure 10.24 For Practice Prob. 10.8. Answer: ZTh = 12.4 - j3.2 ?, VTh = 18.97 ?-51.57° V.

          Find the Thevenin equivalent at terminals a-b of the circuit in Fig. 10.24.
30?20° V
6 ?
j2 ?
a
b
-j4 ?
10 ?
Figure 10.24
For Practice Prob. 10.8.
Answer: ZTh = 12.4 - j3.2 ?, VTh = 18.97 ?-51.57° V.

Added by Thomas J.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Adi S

07/23/2023

Step 1

To do this, we remove the load resistance (the resistance across terminals a-b) and turn off all independent sources. In this case, we set the voltage source to zero, which means replacing it with a short circuit. Show more…

Show all steps

Thanks for your feedback!

Find the Thevenin equivalent at terminals a-b of the circuit in Fig. 10.24. 30/20 V -j4 ̐ 10 ̐ Figure 10.24 For Practice Prob. 10.8. Answer: ZTh = 12.4 - j3.2 ̐, VTh = 18.97 /-51.57° V.
