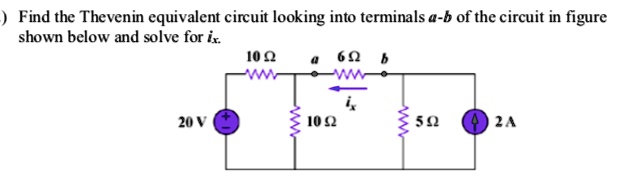

Find the Thevenin equivalent circuit looking into terminals a-b of the circuit in figure shown below and solve for ix. 10 ? a 6 ? b ix 20 V 10 ? 5 ? 2 A

          Find the Thevenin equivalent circuit looking into terminals a-b of the circuit in figure shown below and solve for ix.
10 ?
a 6 ? b
ix
20 V
10 ?
5 ? 2 A

Find the Thevenin equivalent circuit looking into terminals a-b of the circuit in figure shown below and solve for ix.
10 ?
a 6 ? b
ix
20 V
10 ?
5 ? 2 A

Added by Martha T.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Narayan Hari

12/28/2024
