Find the total impedance (Z_(eq )) of the circuit shown. Finalize your answer with complex number in rectangular form.
Added by Kimberly R.
Close
Step 1
Finalize your answer with complex number in rectangular form. 10 $\Omega$ 40 $\mu$F 10 mH 20 $\mu$F + 2 $\Omega$ 80cos(40t) V 6 $\Omega$ $v_o(t)$ 4 mH - Show more…
Show all steps
Your feedback will help us improve your experience
Sahil Kumar and 65 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

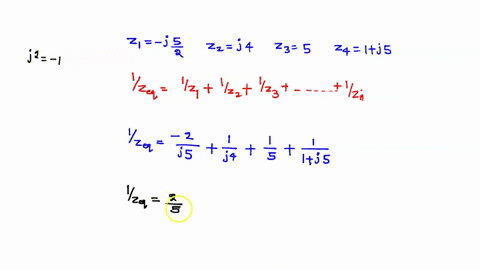

Given: Z1 = -j2.5 ohms, Z2 = j4 ohms; Z3 = 5 ohms; Z4 = (1 + j5) ohms. If the four impedances are connected in parallel, find the equivalent impedance in ohms.
Sahil K.

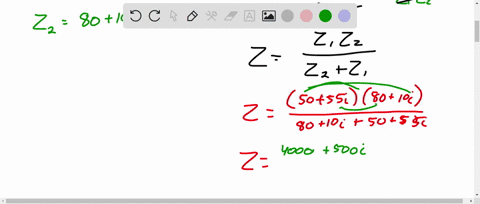

In a parallel electrical circuit the impedance Z can be calculated using the equation Z = 1 / (1/Z1 + 1/Z2) where Z1 and Z2 are the impedances for the branches of the circuit. If Z1 = 50 + 55i and Z2 = 80 + 10i, calculate Z. Z = (Simplify your answer. Type your answer in the form a + bi. Use integers or decimals for any numbers in the expression. Round the final answer to the nearest hundredth as needed. Round all intermediate values to four decimal places as needed.)
