15 V i1 ? 12 ? + v1 - 6 ? 10 ? + v2 - 40 ? i2 ?
Added by Lucas W.
Close
Step 1
However, without the specific details of the circuit (like the arrangement of resistors, voltage sources, etc.), I'll provide a general approach to solving such problems. Let's assume a simple series circuit with a voltage source and two resistors (12Ω and 40Ω) Show more…
Show all steps
Your feedback will help us improve your experience
Madhur L and 76 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

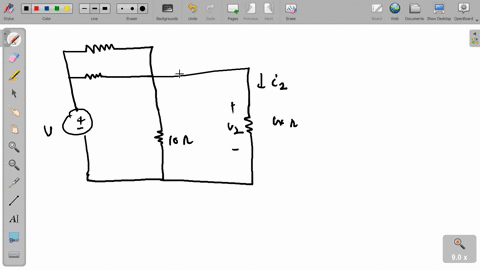

PRACTICE PROBLEM 2A2 Find V1 and V2 in the circuit shown in Fig: 2.43. Also, calculate i1 and i2 and the power dissipated in the 20-Ω and 40-Ω resistors. Answer: V1 = 10 V, V2 = 5 V, i1 = 416.7 mA, i2 = 250 mA, power dissipated in the 20-Ω resistor = 2.083 W, power dissipated in the 40-Ω resistor = 2 W. Figure 2.43
Suman K.

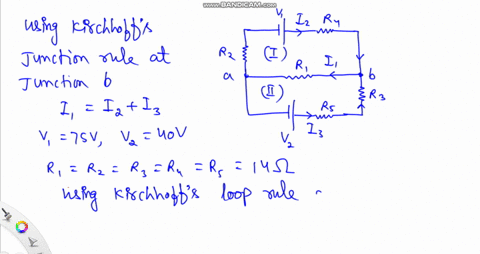

In the following circuit, V1 = 75 V and V2 = 40 V and all of the resistors are 14 Ω Find the current labelled I1
Vishal G.
Find V1 and V2 in the circuit shown in Fig: 2.43. Also calculate i1 and i2 and the power dissipated in the 12-Ω and 40-Ω resistors. Answer: V1 = 10 V, i1 = 833.3 mA, P1 = 8.333 W; V2 = 20 V, i2 = 500 mA, P2 = 10 W.
Prem B.
