For a communication channel with a bandwidth of 3 kHz and a signal-to-noise ratio (S/N) of 30 dB, as well as discrete signal levels of 8 levels, investigate the following: a. What is the maximum channel capacity? b. What is the actual channel capacity at the given S/N? c. How is the capacity improved when the bandwidth is tripled and when the S/N is doubled?

Name: for a communication channel whose bandwidth is 3khz sn is 30db and discrete signal levels are 8 levels investigate a maximum channel capacity b actual channel capacity at the above sn c how 23702
Uploaded: 2023-11-18T18:13:54-08:00
Duration: 2 min 7 s
Channel: Adi S
Description: for a communication channel whose bandwidth is 3khz sn is 30db and discrete signal levels are 8 levels investigate a maximum channel capacity b actual channel capacity at the above sn c how 23702

          For a communication channel with a bandwidth of 3 kHz and a signal-to-noise ratio (S/N) of 30 dB, as well as discrete signal levels of 8 levels, investigate the following:

a. What is the maximum channel capacity?
b. What is the actual channel capacity at the given S/N?
c. How is the capacity improved when the bandwidth is tripled and when the S/N is doubled?

for a communication channel whose bandwidth is 3khz sn is 30db and discrete signal levels are 8 levels investigate a maximum channel capacity b actual channel capacity at the above sn c how 23702

Added by Isabel H.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Adi S

11/18/2023

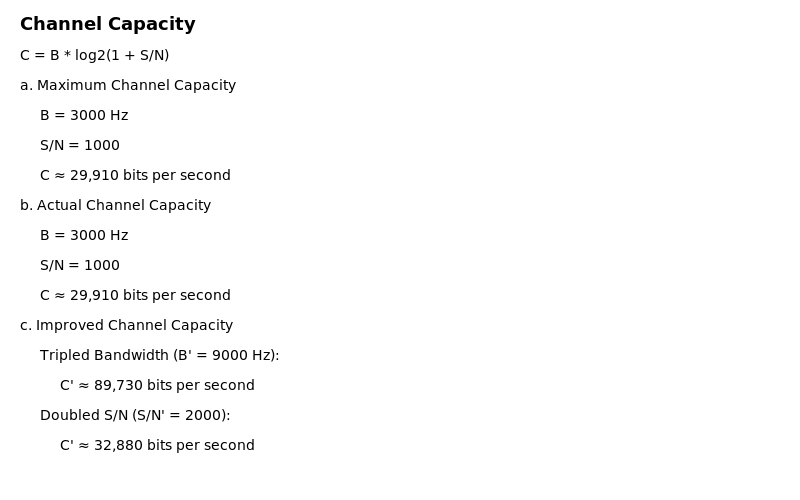

Step 1

In this case, the bandwidth is 3 kHz, so B = 3000 Hz. The signal-to-noise ratio is 30 dB, so S/N = 10^(30/10) = 1000. Plugging these values into the formula, we get: C = 3000 * log2(1 + 1000) C ≈ 3000 * log2(1001) C ≈ 3000 * 9.97 C ≈ 29,910 bits per second Show more…
