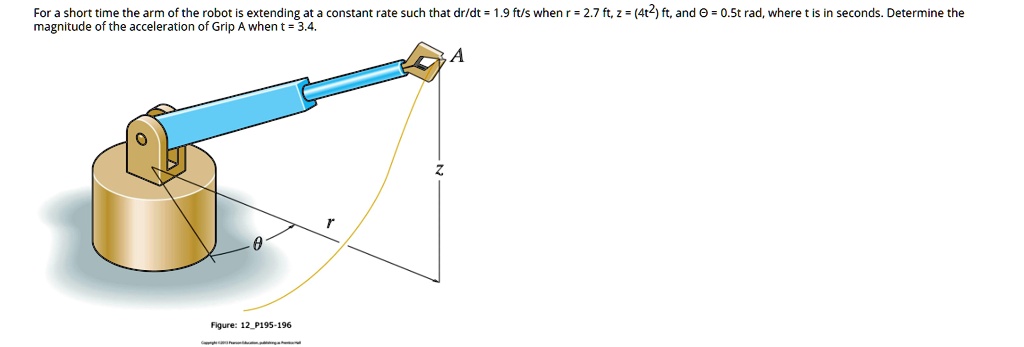

For a short time the arm of the robot is extending at a constant rate such that dr/dt = 1.9 ft/s when r = 2.7 ft, z = (4t^2) ft, and ? = 0.5t rad, where t is in seconds. Determine the magnitude of the acceleration of Grip A when t = 3.4.
Added by Clayton M.
Close
Step 1
4. r = 2.7 ft (given) z = 4t^2 ft = 4(3.4)^2 ft = 4(11.56) ft = 46.24 ft θ = 0.5t rad = 0.5(3.4) rad = 1.7 rad Show more…
Show all steps
Your feedback will help us improve your experience
Madhur L and 92 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
At the instant shown, the robotic arm $A B C$ is being rotated simultaneously at the constant rate $\omega_{1}=0.15$ rad/s about the $y$ axis, and at the constant rate $\omega_{2}=0.25 \mathrm{rad} / \mathrm{s}$ about the $z$ axis. Knowing that the length of arm $A B C$ is $1 \mathrm{m}$, determine (a) the angular acceleration of the arm, $(b)$ the velocity of point $C,(c)$ the acceleration of point $C$.
Kinematics of Rigid Bodies
Motion of a Rigid Body in Space

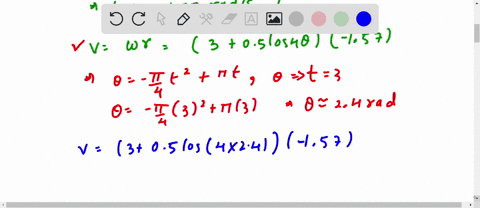

Robots with telescoping arms are sometimes used to perform tasks (e.g., welding or placing screws) where access may be difficult for other robotic types. During a test run, a robot arm is programmed to extend according to the relationship $r=3+0.5 \cos (4 \theta)$ and the arm rotates according to the relationship $\theta=-\frac{\pi}{4} r^{2}+\pi t,$ where $r$ is in feet, $\theta$ is in radians, and $t$ is in seconds. Determine $(a)$ the velocity and acceleration of the robot tip $A$ at $t=3 \mathrm{~s}$ and $(b)$ use a computer program to plot the path of tip $A$ in $x$ and $y$ coordinates for $0 \leq t \leq 4 \mathrm{~s}$.
