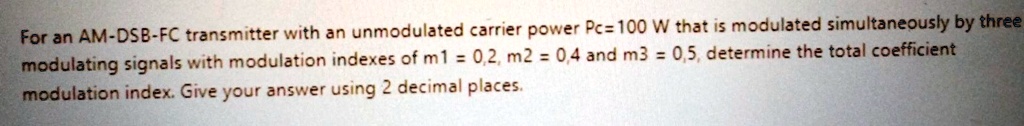

For an AM-DSB-FC transmitter with an unmodulated carrier power Pc=100 W that is modulated simultaneously by three modulating signals with modulation indexes of m1 = 0,2, m2 = 0,4 and m3 = 0,5, determine the total coefficient modulation index. Give your answer using 2 decimal places.
Added by Katherine W.
Close
Step 1
The modulation index (m) is a measure of the extent of modulation applied to the carrier wave. It is defined as the ratio of the amplitude of the modulating signal to the amplitude of the carrier signal. Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 56 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

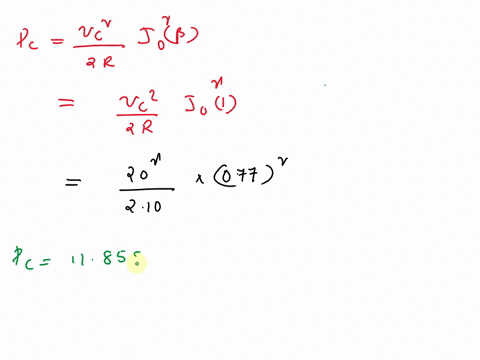

For an FM modulator with an unmodulated carrier amplitude of 20V, a modulation index of 1, and a load resistance of 10 Ω, determine the power in the modulated carrier and in each side frequency. Use the Bessel Function table. Round off your final answers to 2 decimal places. ANSWER: Pc = W P1 = W P2 = W P3 = W
Madhur L.

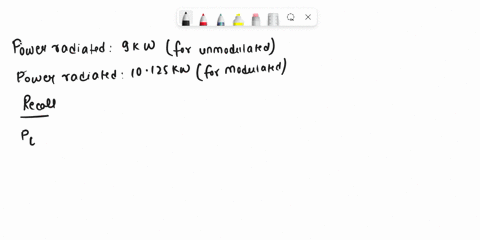

An AM transmitter radiates 9 kW of power when the carrier is unmodulated and 10.125 kW when the carrier is sinusoidally modulated. Find the modulation index, percentage of modulation. Now, if another sine wave, corresponding to 40 per cent modulation is transmitted simultaneously, then calculate the total radiated power.
Adi S.
For an FM modulator with a modulation index mf = 1, a modulating signal Vm(t) = Vm sin(2π1000t) and unmodulated carrier Vc(t) = 10 sin(2π500kt), determine: a) Number of sets of significant sidebands b) Their amplitude c) Then draw the frequency spectrum showing their relative amplitudes d) Determine the unmodulated carrier power for the FM modulator (assume a load resistance RL = 50 Ω) e) Determine the power in the modulated carrier and each side frequency, and sketch the power spectrum for the modulated wave.
