Question

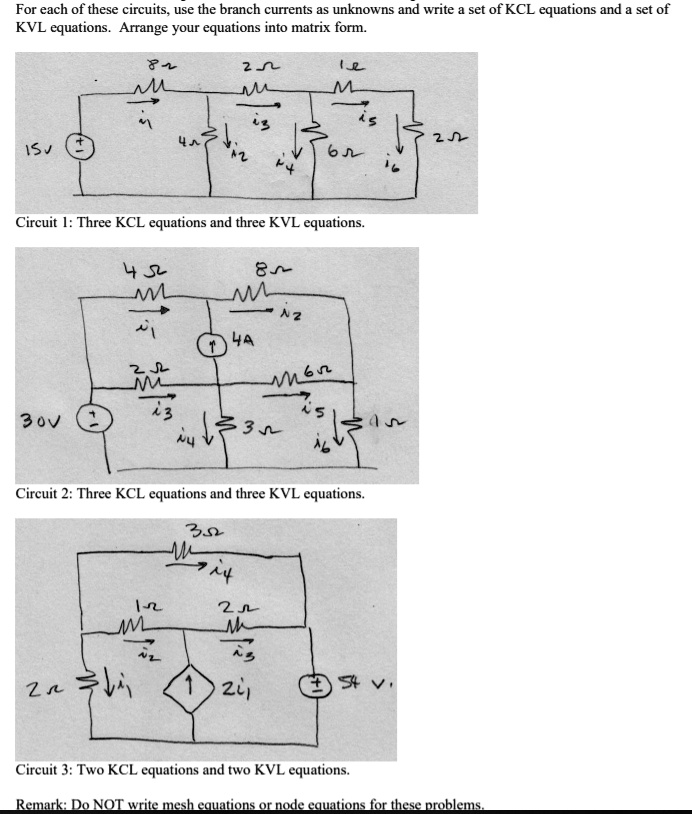

For each of these circuits, use the branch currents as unknowns and write a set of KCL equations and a set of KVL equations. Arrange your equations into matrix form. Circuit 1: Three KCL equations and three KVL equations. Circuit 2: Three KCL equations and three KVL equations. Circuit 3: Two KCL equations and two KVL equations. Remark: Do NOT write mesh equations or node equations for these problems.

          For each of these circuits, use the branch currents as unknowns and write a set of KCL equations and a set of KVL equations. Arrange your equations into matrix form.
Circuit 1: Three KCL equations and three KVL equations.
Circuit 2: Three KCL equations and three KVL equations.
Circuit 3: Two KCL equations and two KVL equations.
Remark: Do NOT write mesh equations or node equations for these problems.

For each of these circuits, use the branch currents as unknowns and write a set of KCL equations and a set of KVL equations. Arrange your equations into matrix form.
Circuit 1: Three KCL equations and three KVL equations.
Circuit 2: Three KCL equations and three KVL equations.
Circuit 3: Two KCL equations and two KVL equations.
Remark: Do NOT write mesh equations or node equations for these problems.

Added by Jeffrey C.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Sri K

10/21/2022

Step 1

Step 1: For Circuit I, we have the following KCL equations: Show more…

Show all steps

Thanks for your feedback!

For each of these circuits, use the branch currents as unknowns and write a set of KCL equations and a set of KVL equations. Arrange your equations into matrix form. Circuit I: Three KCL equations and three KVL equations. Circuit II: Three KCL equations and three KVL equations. Circuit III: Two KCL equations and two KVL equations. Remark: Do not write mesh equations.
