Question

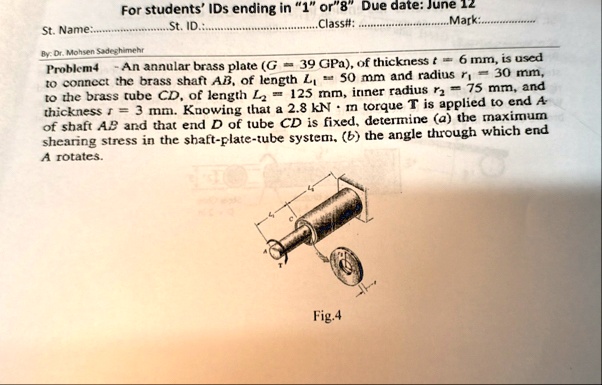

For students' IDs ending in "1" or" 8 " Due date: June 12 St. Name: q, St. ID.: q, Class#: q, Mark: q, By: Dr. Mohsen Sadeghimehr Problem4 - An annular brass plate ( G=39GPa ), of thickness t=6mm, is used to connect the brass shaft AB, of length L_(1)=50mm and radius r_(1)=30mm, to the brass tube CD, of length L_(2)=125mm, inner radius r_(2)=75mm, and thickness r=3mm. Knowing that a 2.8kN*m torque T is applied to end A of shaft AB and that end D of tube CD is fixed, determine (a) the maximum shearing stress in the shaft-plate-tube system, (b) the angle through which end A rotates.

          For students' IDs ending in "1" or" 8 " Due date: June 12
St. Name: q, St. ID.: q, Class#: q, Mark: q,
By: Dr. Mohsen Sadeghimehr
Problem4 - An annular brass plate ( G=39GPa ), of thickness t=6mm, is used to connect the brass shaft AB, of length L_(1)=50mm and radius r_(1)=30mm, to the brass tube CD, of length L_(2)=125mm, inner radius r_(2)=75mm, and thickness r=3mm. Knowing that a 2.8kN*m torque T is applied to end A of shaft AB and that end D of tube CD is fixed, determine (a) the maximum shearing stress in the shaft-plate-tube system, (b) the angle through which end A rotates.

for students ids ending in 1 or 8 due date june 12 st name q st id q class q mark q by dr mohsen sadeghimehr problem4 an annular brass plate g39gpa of thickness t6mm is used to connect the b 55853

Added by Rosario K.
